Description
The XK7120 personal CNC mill machine is a highly versatile, multi-purpose tool designed to mill surfaces and drill holes. As a Mini CNC mill machine, it combines compact size with powerful performance, making it ideal for various machining tasks. The machine features high power, excellent rigidity, and impressive precision, ensuring reliable results even in complex operations.
Moreover, the Mini CNC mill machine offers a substantial storage capacity, enabling it to efficiently handle a wide range of projects. Its high price-to-quality ratio provides excellent value for businesses, making it a cost-effective choice for those seeking reliable performance without compromising on quality. The long cycle life and durability of the XK7120 further enhance its appeal.
This Mini CNC mill machine is widely applied across industries such as instrumentation, meters, light industries, electronics, home appliances, medical instruments, and aerospace. Its ability to deliver precision and efficiency in such diverse fields makes it an essential tool for numerous applications. With its high-performance features, the XK7120 is a trusted solution for those looking for an affordable yet reliable CNC milling machine.
Specification of Mini CNC Mill
| Specification | XK7120 |
|---|---|
| Max. drilling capacity | 28mm |
| Max. end milling capacity | 20mm |
| Max. face milling capacity | 63mm |
| Table size | 540×180mm |
| Spindle taper | MT3/R8 |
| Motor power | 1.5KW |
| Max. distance from spindle to column | 212mm |
| Max. distance from spindle nose to table | 50-330mm |
| T-slot size | 12mm |
| Table travel (X/Y) | 325×200mm |
| Max. spindle travel | 70mm |
| Spindle speeds | 50-3000rpm |
| Overall size | 1100×900×1530mm |
| Packing size | 1200×1100×1750mm |
Main Features
Suitable for machining parts of automobile, mold industry and so on.
MT3 or R8 spindle as optional selection.
3000rpm spindle speed.
Low noise and high precision.
Best choice for hobby users.
Certificates

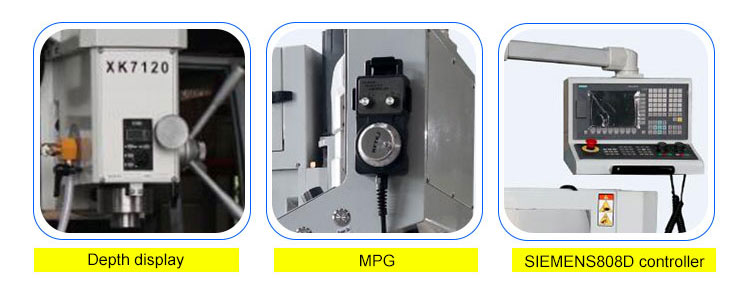

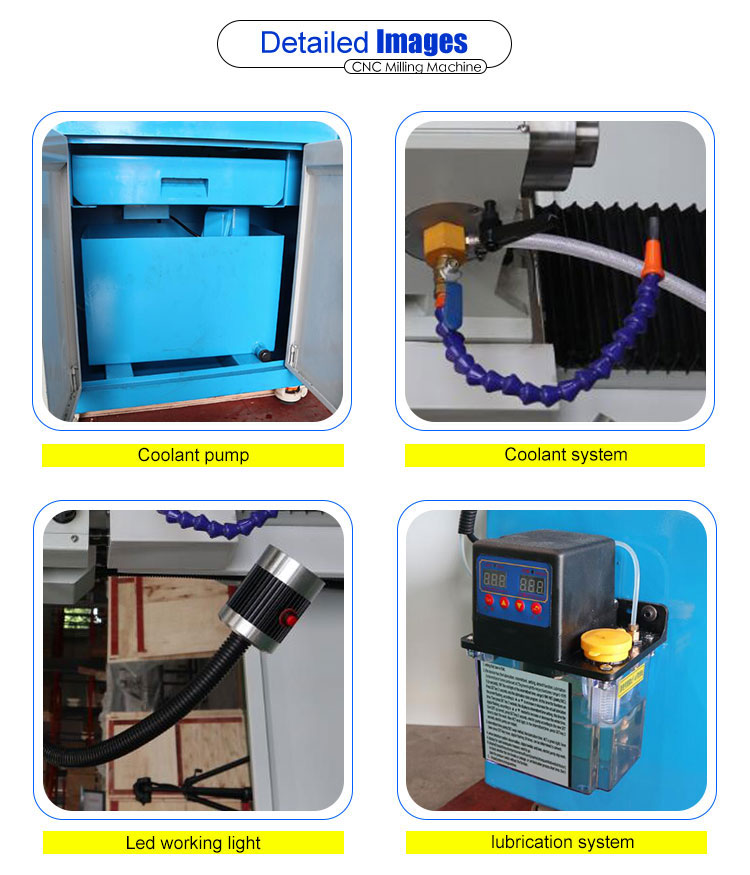

Machine Details of CNC Mill Machine
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC‘s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
