Description

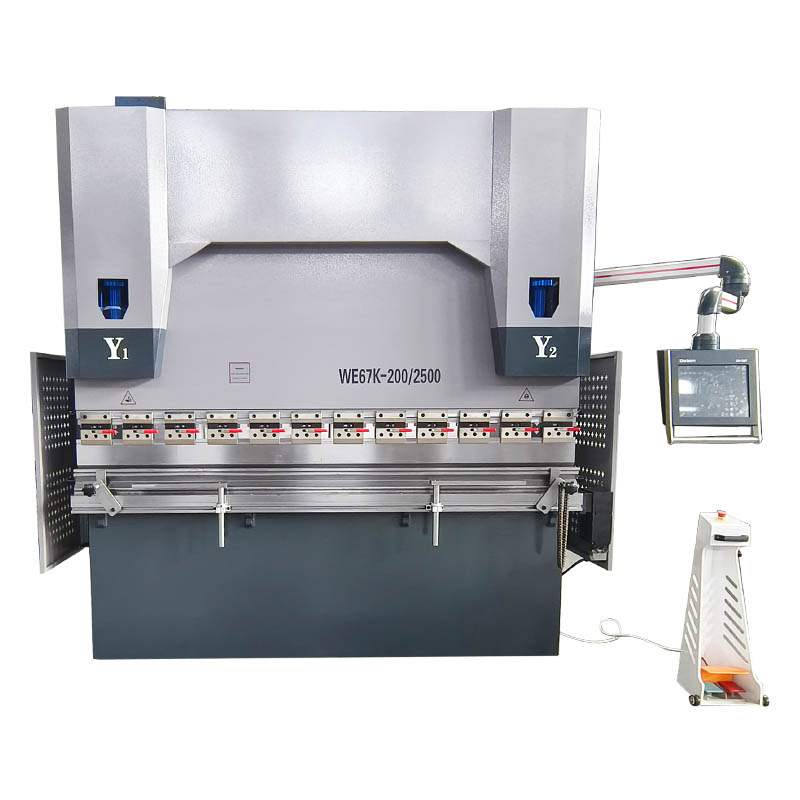

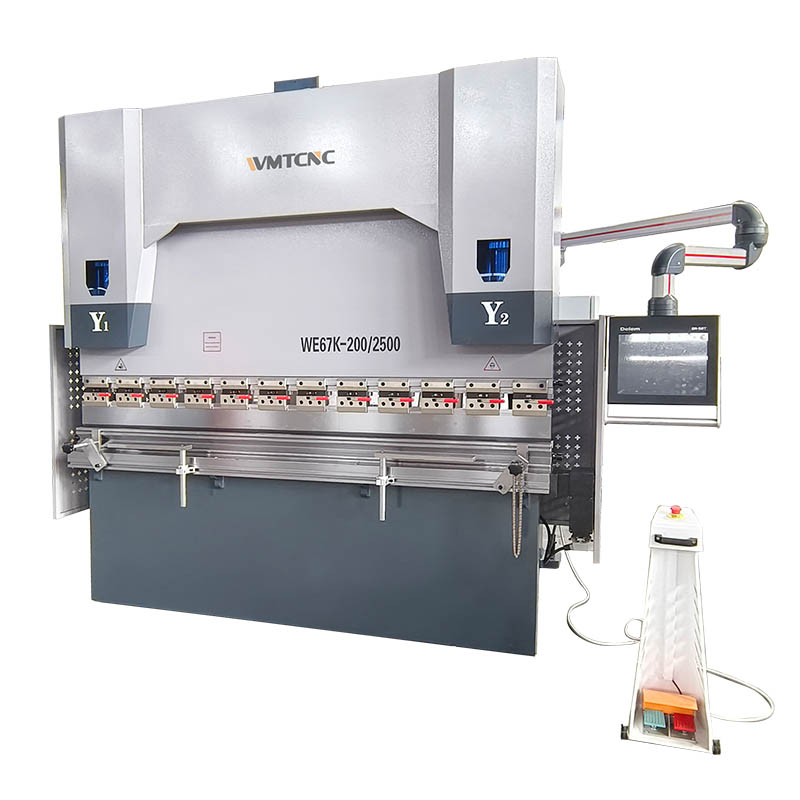

The WE67K-200X2500 CNC Press Brake is a high-precision bending solution designed for manufacturers seeking accuracy, reliability, and efficiency. With a 200-ton bending capacity and 2500mm working length, it is ideal for processing medium-sized sheet metal parts with complex bending requirements.
Equipped with a specialized CNC system for press brakes, this machine supports double-axis control for synchronized operation and optimized workflow. The backgauge system adopts imported ball screws and linear guideways, ensuring smooth movement, minimal backlash, and long-lasting precision..
Specifications
| Specification | WE67K-200/2500 | |
|---|---|---|
| Nominal pressure | 2000KN | |
| Length of working table | 2500mm | |
| Distance between uprights | 2000mm | |
| Throat depth | 350mm | |
| Stroke | 200mm | |
| Open height | 485mm | |
| Motor power | 15KW | |
| Gear pump | 32L | |
| Work speed | Fast down | 120mm/sec |
| Work | 10 | |
| Return | 110 | |
| Weight | 9000KGS | |
| Dimension | 2900x1600x2760mm | |
Features
1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

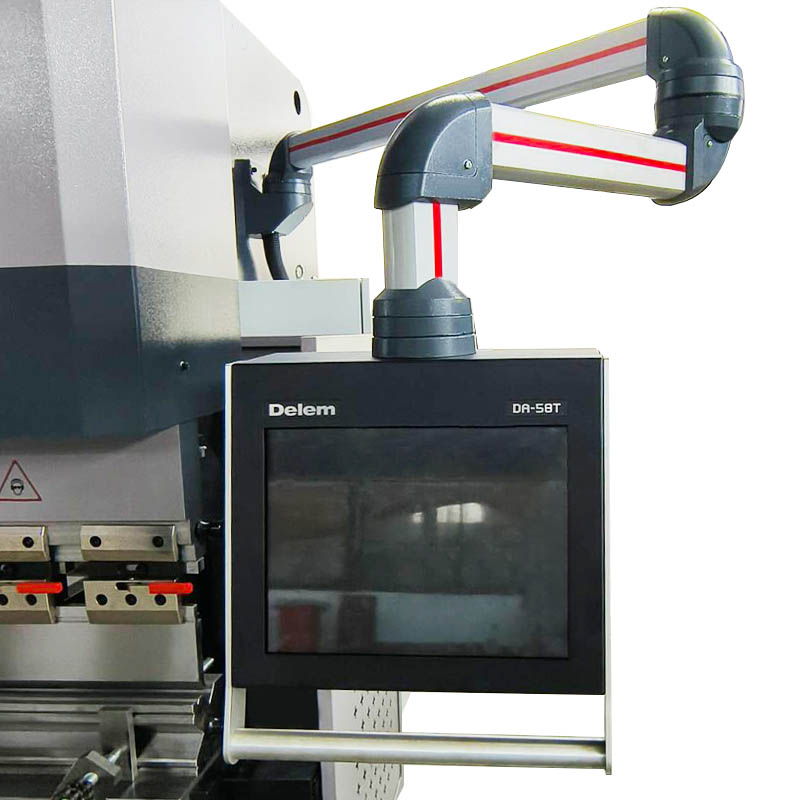

2. Equipped with the DELEM user-friendly user interface,the DA53T provides all main press brake functionality.
3. Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.

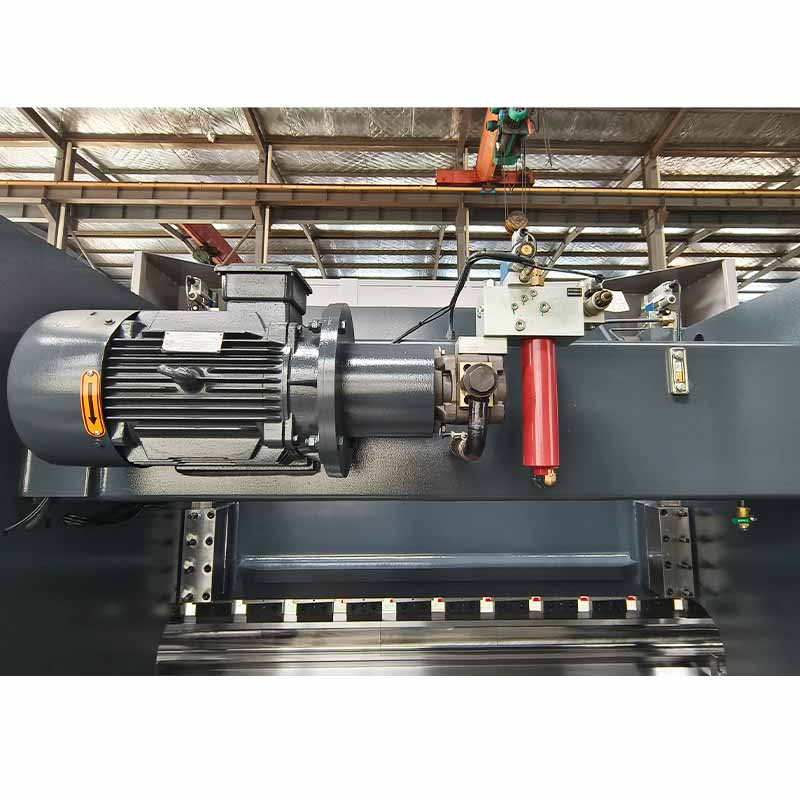

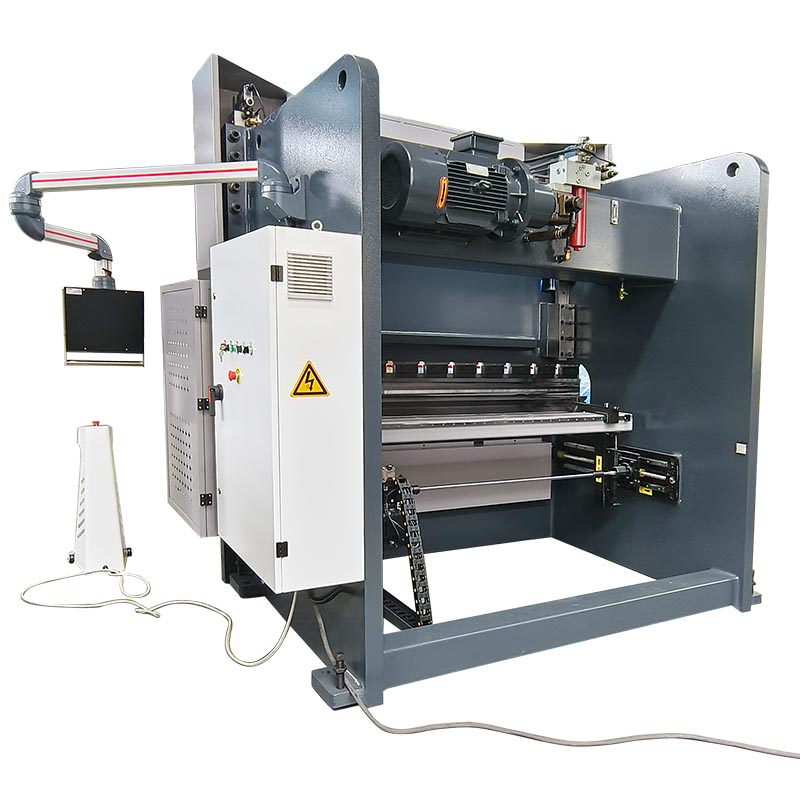

Machine Details
