Description

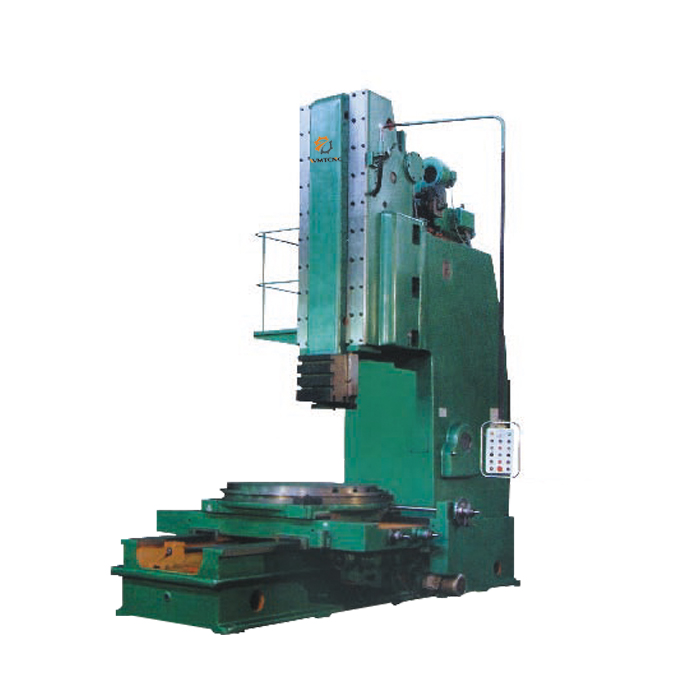

The metal slotting machine is a highly versatile and precision-driven tool designed to process a wide range of internal and external planes on both large and medium-sized workpieces. It is particularly effective for manufacturing industries that require the precise shaping of complex profile surfaces and keyways.
With its robust construction and advanced engineering, the machine offers exceptional stability during operation, ensuring consistent cutting quality even under high-load conditions. The slotting machine utilizes a sliding reciprocating motion that enables it to execute intricate shaping and machining tasks with remarkable efficiency. One of its key advantages is the ability to adjust the sliding stroke seamlessly during the working process, without the need to stop the machine. This real-time adjustment capability significantly enhances operational flexibility and reduces downtime, allowing for continuous processing and improved productivity.
Specification
| Specification | BC50100 |
| Maximum cutting length (interpolated inner hole 850mm) | 1000mm |
| Cutting stroke speed | 425m/min |
| Return travel speed | 7-25m/min |
| Maximum weight for pluggable work | 4000kg |
| Main drive motor power | 37kw |
| Allow maximum cutting force (when the stroke speed is 16m-20m) | 24500N |
| Table diameter | 1250mm |
| Maximum movement of the workbench | 1200/1100mm |
| Distance from the tool support surface to the front wall of the bed | 1120mm |
| Feed range | 0.2-5mm/double stroke |
| Landscape | 0.2-5mm/double stroke |
| Circumference (on the circumference of 9700) | 0.4-10mm/double stroke |
| Distance from work surface to the lower end of the carriage | 1140mm |
| Workbench fast moving longitudinal and horizontal | 500mm/min |
| Machine dimensions (length × width × height) | 4000×2830×570mm |
| Total machine weight (including electrical equipment) | 22T |
Main Features
The slide bed, work table and oil pump are driven by separate electric motors
The cutting speed can be step-less adjusted.
Machine has various safety devices like electromagnetic automatic knife lifting of the tool holder and bar
The tool holder is used for external cutting,and the tool bar is used for interpolation and keyway.
The machine is equipped with precision control systems that allow for fine-tuning of cutting parameters, ensuring that the specific needs of different materials and part geometries are met. Whether dealing with straight slots, internal grooves, or more complex contours, the slotting machine provides excellent adaptability.
Designed for ease of maintenance and long-term durability, the metal slotting machine also incorporates safety features to protect operators during use. Its ergonomic layout ensures that operators can make adjustments quickly and accurately, further improving overall workflow.This machine is widely used in industries such as automotive manufacturing, aerospace, heavy equipment production, and general metalworking, where reliability, precision, and adaptability are critical requirements for success.
