Description
Special for repairing brake drum of vehicles, optional for brake shoe or hubless brake drum, widely used in auto repair plant, bus company, transportation company & transportation department of large enterprise, etc.
Specification
| Specification | TC8365A |
| Max. boring diameter | 650 mm |
| Range of boring diameter | 200–650 mm |
| Vertical travel of toolpost | 350 mm |
| Spindle speed | 25, 45, 80 rpm |
| Feed | 0.16, 0.25, 0.40 mm/r |
| Moving speed of toolpost | 490 mm/min |
| Motor power | 1.5 kW |
| Overall dimensions (L × W × H) | 1140 × 900 × 1600 mm |
| Weight | 960 / 980 kg |
Main Features
- Tool post approaches workpiece fast & micro feed enables more convenience.
- Feeding in either direction & rapid up/down enables high efficiency.
- Super strong spindle structure makes boring elliptical deformable / surface-hardened brake drum possible.
- Applicable for brake drums of various vehicles like FAW, Dongfeng, Howo, Steyr, Hongyan, medium buses & vans, Fuhua axle, Anhui axle, Hande axle, York axle, BPW axle, Shuguang axle, etc.

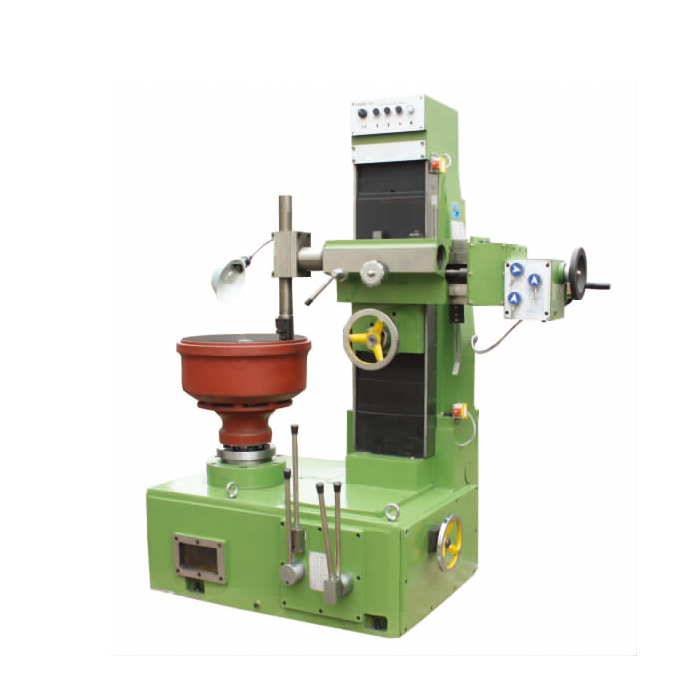

Machine Details
