Description
The most powerful boring machine in its class,you will be amazed at the power and flexibility of the potrable boring machine.
Specification
| Specification | JRT40 |
| Boring bar dia. and length | ⌀40 × 1500mm |
| Boring diameter range | ⌀45–200mm |
| Facing diameter | ⌀50–260mm |
| Power unit | 1.2KW |
| Boring bar rotation speed (variable) | 0–87 rpm |
| Axial feed per revolution (variable) | 0–0.6 mm/r |
| Axial feed travel | 390mm |
| Machining hole face roughness | Ra 3.2 |
| Machining hole roundness tolerance | ≤ 0.04mm |
Main Features
The driver:1.5Kw Dc motor provide enough torque,ensure that cutting process powerful and stable.
Feed forward and reverse can be achieved with a 90w motor in the electric control box.
Induction hardened boring bar has high wear resistance and good toughness properties.
You can fasten the tool holder anywhere along the boring bar.
Modular components make setup quick and easy.
Motor controller has the function of delay stopping,so when you stop,the tool will not be demaged easily.
With the powerful facing head,you can handle the facing jobs with ease.(Optional)

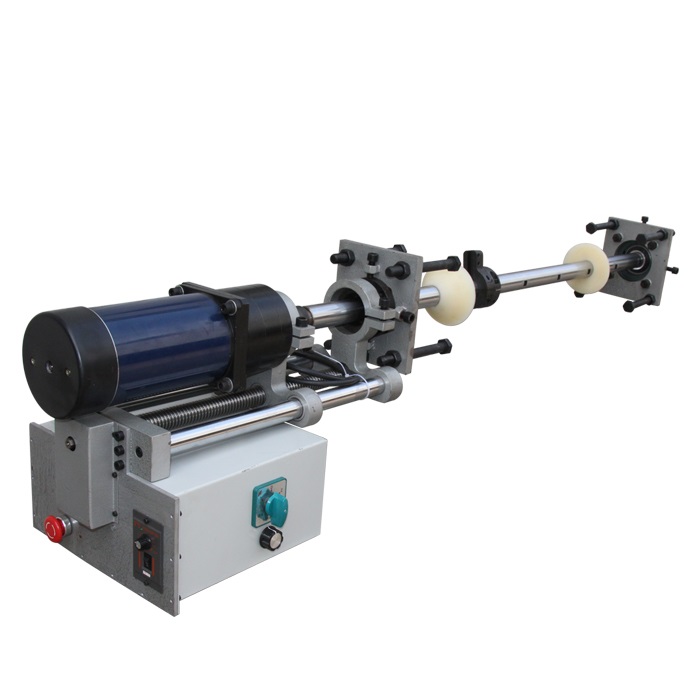

Machine Details
