Description

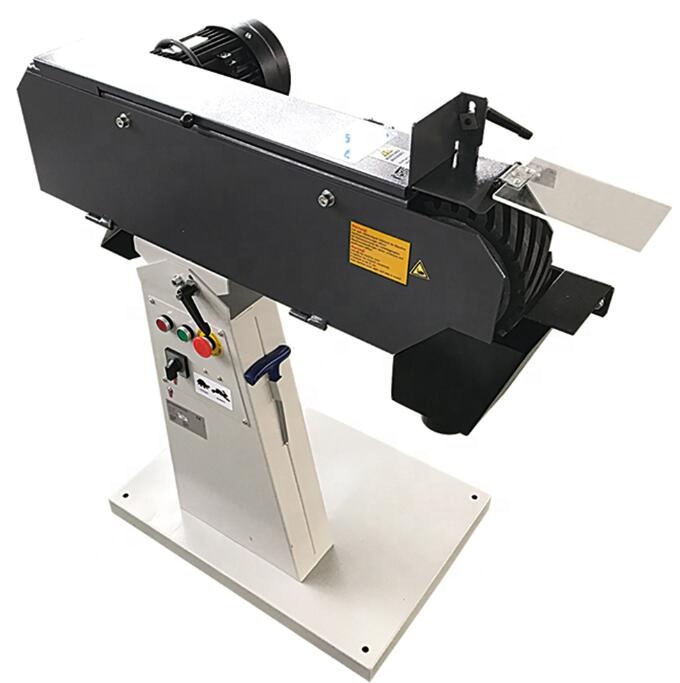

MBS100 Belt Sander is an abrasive machining process used on metals and other materials. It is typically used as a finishing process in the industry. A belt, coated in abrasive material, is run over the surface to be processed in order to remove the material or produce the desired finish.
Specification
| Model | MBS-100 |
| Motor Power | 3.3KW |
| Belt Size | 100x2000mm |
| Belt Speed | 18.5-45m/s |
| Working Height | 620-1280mm |
| Net Weight | 92kg |
Main Features
- Compound action swivel vice achieving angles between 30°- 90°
- Belt sander on the back worktable
- Deburring support
- Easy roller changing system
- 1 grinding roller 42.4mm standard, 20-76.1mm available according to order
- Zirconium corundum sand belt, corn 40 standard, 100x2000mm
- Roller holder (space for 8 rollers)
- 2 dust collection boxes
- 1 Allen key to operate/adjust machine
