Description

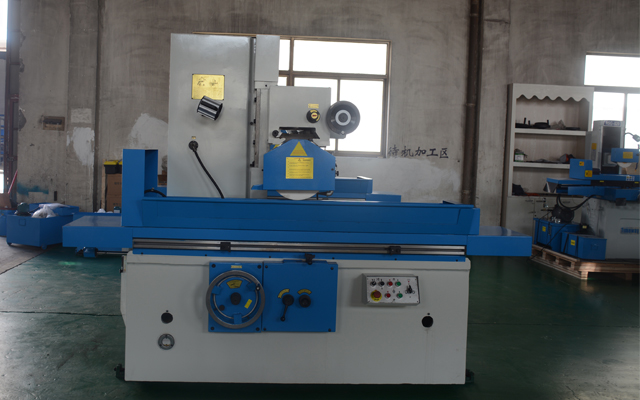

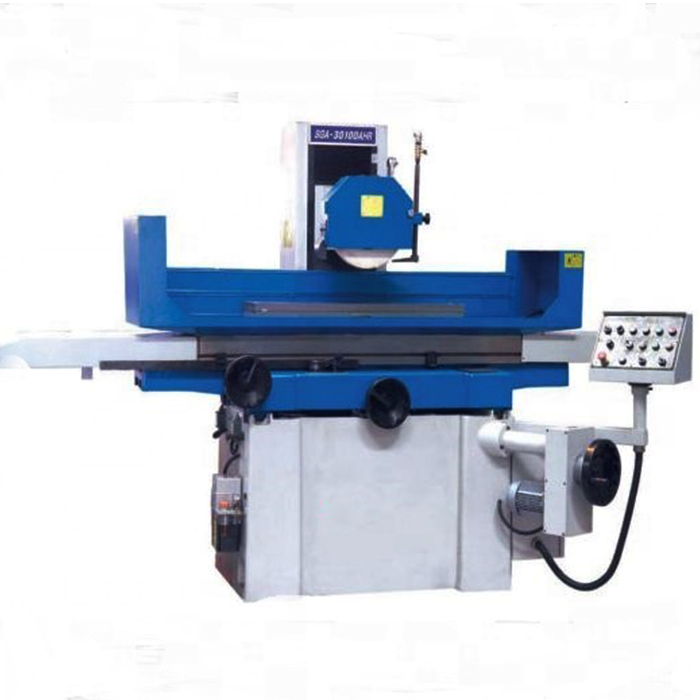

The surface grinding machine SGA30110 with a pleasing appearance and well-designed structure, the machine is indeed precision grind equipment for metalworking. The well-designed structure has good rigidity and keeps the machine with high accuracy. The oil temperature increases low after long working.
Specification
| Specification | SGA-30110AH/AHR/AHD | |||
| Table size (WxL) | mm | 305x1020mm | ||
| Max. longitudinal travel | mm | 1130mm | ||
| Cross travel | mm | 340mm | ||
| Max. distance from spindle center to table | mm | 580mm | ||
| Magnetic chuck size | mm | 300x1000mm | ||
| Speed of table longitudinal movement | m/min | 7-23 | ||
| Table transverse movement/ Auto feed | mm/min | 0.1-8 | ||
| Table transverse movement/ Rapid speed | mm/min | 990 | ||
| Table transverse movement/ Feed of handwheel | mm/div | 0.02 | ||
| Wheelhead vertical movement/ Auto feed | mm/stroke | -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05 (only for D model) | ||
| Wheelhead vertical movement/ Rapid speed | mm/min | -(H mode)610 (only for R model) 480 (only for D model) | ||
| Wheelhead vertical movement/ Feed of handwheel | mm/div | 0.005 | ||
| Grinding wheel Speed 50HZ | r/min | 1450 | ||
| Grinding wheel Speed 60HZ | r/min | 1750 | ||
| Grinding wheel (ODxWxID) Size | mm | 350x40x127mm | ||
| Spindle motor | kw | 4/5.5kw | ||
| Hydraulic Motor | kw | 2.2kw | ||
| Cooling pump motor | kw | 0.09kw | ||
| Elevating motor | kw | -(H mode)0.25 (R mode)0.5 (D mode servo motor) | ||
| Cross feed Motor | kw | 0.04kw | ||
| Max. loading capacity of table (include magnetic chuck) | kg | 400kg | ||
| Total rated power | kw | 7.5/9kw | ||
| Height of machine | mm | 1890 | ||
| Floor space | mm | 4400×2200 | ||
| Gross weight | kg | 3200kg | ||
| Packing dimensions(LxWxH) | mm | 2960x2210x2220 | ||
Main Features
- The main iron castings are used advanced material and through annealing. Eliminate stress to ensure high precision, high rigidity, and prolong the life of the machine.
- Grinding machine and double v slide adhesive wear-resistant resin TURCITE-B (Teflon), and with precision scraping. Not only the sliding smoothly and wear resistance, the most suitable for form grinding.
- Using a single type integrated design of spindle directly and P4 grade ultra-precision bevel roller bearing. Rotating in high speed, low noise, no vibration, large torque, suitable for heavy cutting and all kinds of form grinding.

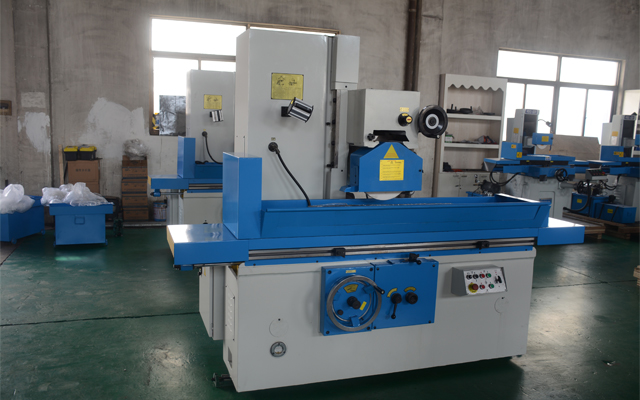

Machine Details
