Description

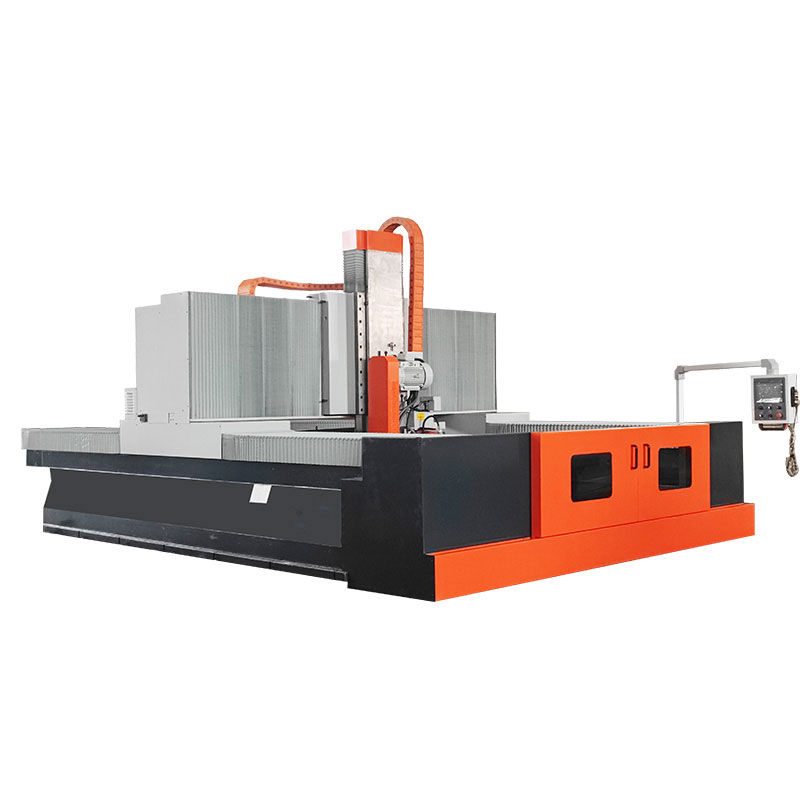

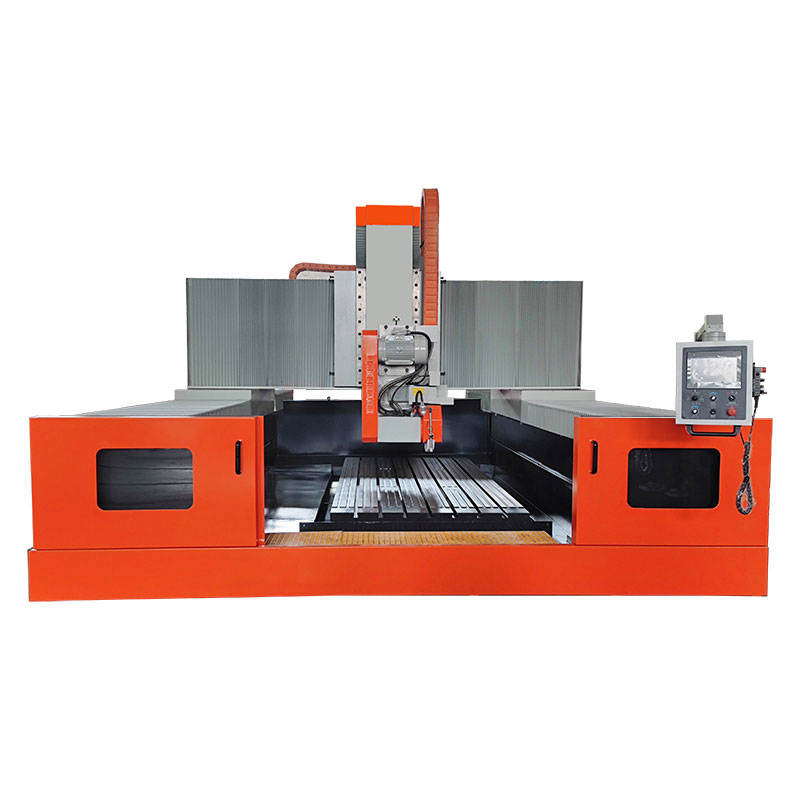

The GM-C4016/LD CNC grinding machine represents the perfect balance of technology, quality, and efficiency. With its floor-standing table design, it not only achieves world-class grinding precision but also saves up to one-third of floor space compared to traditional mobile worktable structures.
This machine ensures minimum vertical feed of 5 μm, workpiece thickness tolerance of 0.01/1000mm, and surface roughness of Ra0.63 μm. In addition, it reduces electricity and fuel consumption, cuts maintenance costs, and enhances long-term production stability.
Specification
| Main Specifications | Unit | 16 Series / GM-C4016/LD |
|---|---|---|
| Max. size of workpiece to be ground (LxWxH) | mm | ****×1600×800 (given by table length) |
| Size of table working surface (LxW) | mm | 2500 / 3000 / 4000 / 5000 / 6000 ×1200 |
| Max. beam longitudinal travel | mm | Given by table length |
| Distance between bed | mm | 2800 |
| Distance spindle center to table | mm | 200 ~ 1050 |
| Beam longitudinal speed | m/min | 3 ~ 23 |
| Max. allowable workpiece load | kg/m² | 10000 |
| Motor power of grinding head | KW | 15 |
| Grinding wheel dimensions (OD×W×ID) | mm | Ø500×75×Ø203 |
| Wheel speed | m/s | <35 |
| Vertical movement distance | mm | 850 |
| Rapid feed speed | mm/min | 400 |
| Minimum vertical feed | mm | 0.005 |
| Horizontal movement distance | mm | 1750 |
| Rapid move speed | mm/min | 50 ~ 2400 |
| Intermittent feed | mm/time | 1 ~ 35 |
| Minimum horizontal feed | mm | 0.01 |
| Working surface to base parallelism | mm | 0.015/1000 |
| Surface roughness | μm | Ra0.63 |
| Electrical equipment total capacity | kVA | 33 |
Main Features
1.High Accuracy: Min. vertical feed 0.005 mm; surface roughness Ra0.63 μm.
2.Space Saving: Floor-standing table reduces workshop space by one-third.
3.Cost Efficiency: Lower electricity, fuel consumption, and maintenance costs.
4.Large Workpiece Capacity: Supports heavy workpieces up to 10,000 kg/m².
5.Strong Power: Equipped with 15 KW grinding head motor and 33 kVA system capacity.
6.Flexible Configurations: Table lengths available 2500/3000/4000/5000/6000 mm.
7.Stable & Reliable: Advanced design ensures parallelism within 0.015/1000 mm.
