Description

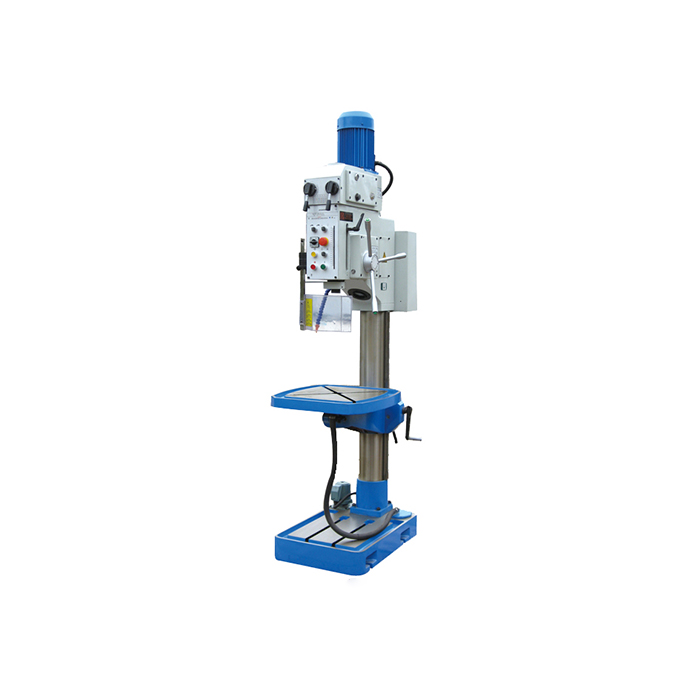

WMT CNC Z5040E is suitable for drilling and tapping. It has 2 speed strong power motor.
Specification
| Specification | Z5040E |
| Max. drilling capacity | 50mm |
| Threading in steel & last iron | M20&M24 |
| Spindle travel | 180mm |
| Spindle taper | M.T.#4 |
| Spindle power feed | 2steps/0.1-0.2mm/rev |
| Spindle speed | 50-1450rpm |
| Width of T-slot | 18mm |
| Max.distance from spindle axis to surface of column | 350mm |
| Max.distance from spindle end to surface of table | 770mm |
| Max.distance from spindle end to surface of base | 1210 |
| Diameter of column | 150mm |
| Table size | 560×560 |
| Base size | 730×500 |
| Motor power | 0.85/1.5kw |
| N.W/G.W | 465kg/615kg |
| Packing size(L×W×H) | 2270×690×1100mm |
Main Features
- Drilling, tapping
- Electronic power feed
- 2-speed strong power motor
- Automatic tools ejectors
- 2 steps power feed 0.1-0.2mm/rev
Machine details

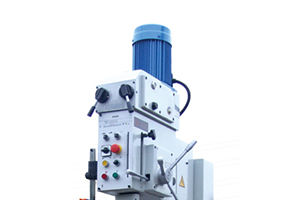

Spindle

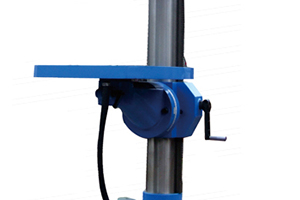

Round column
