Z3063X20 Radial Drill 63mm | 16 Speeds

High Speed China Drill Press Z3063 Hydraulic Radial Drilling Machine with Low Price

Certification: ISO9001 CE
Type: Vertical
Warranty: 13 months
Voltage: As customers’ requirement
Color: As customers’ requirement
After-sale service: Available
Brand Name:WMTCNC

Description

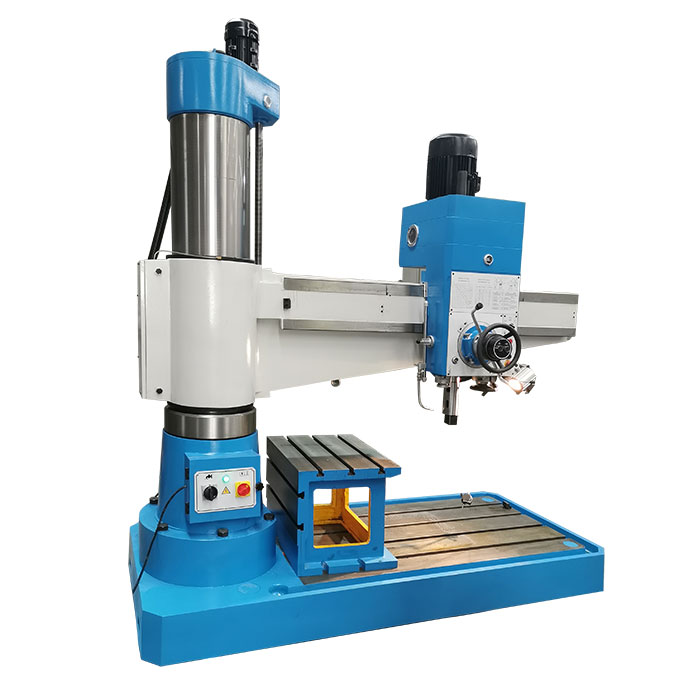

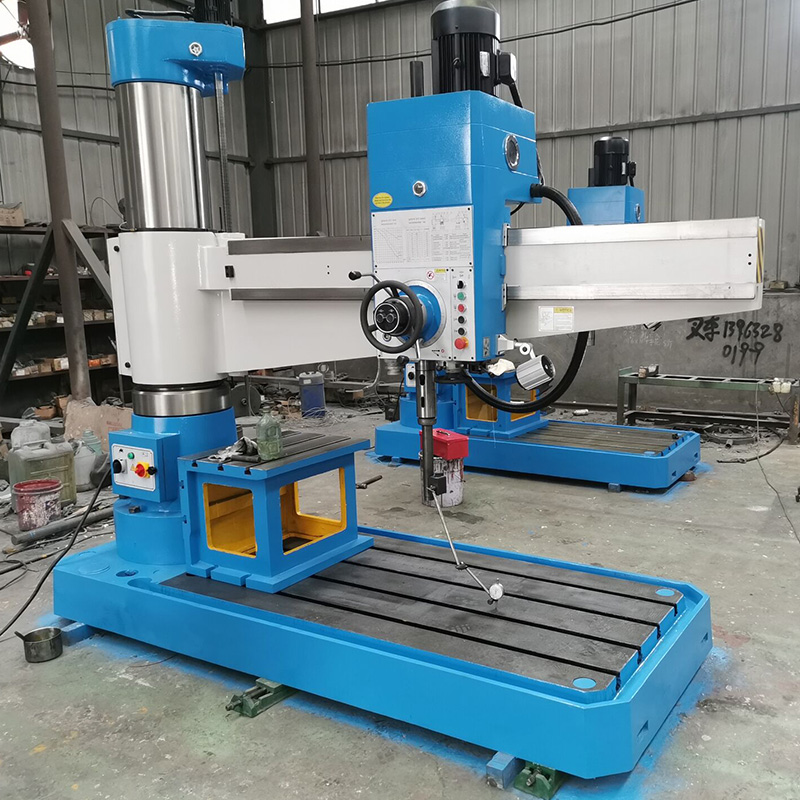

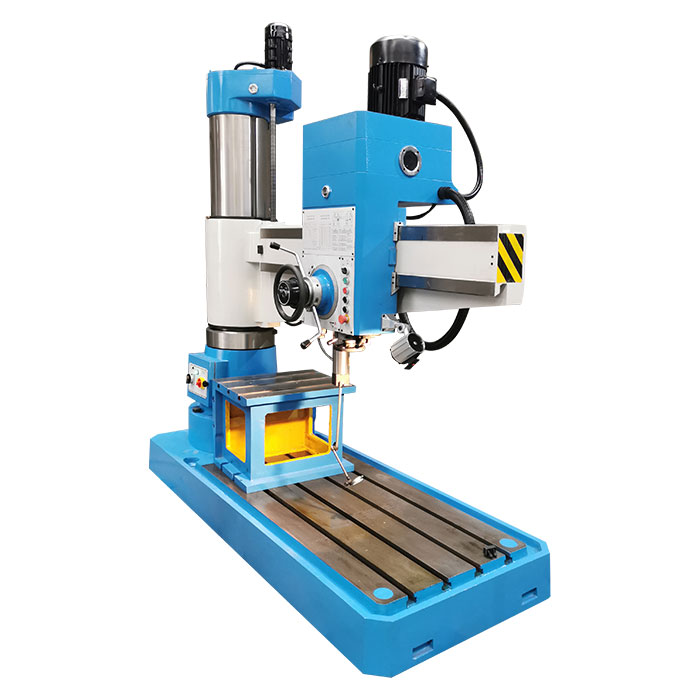

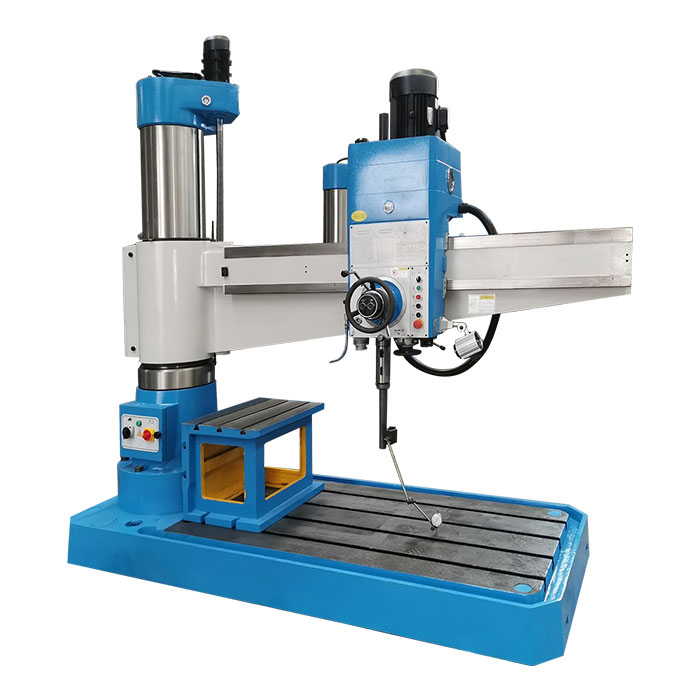

The radial drilling machine Z3063X20 is a high-performance radial drilling machine with a maximum drilling capacity of 63mm, designed for precision and heavy-duty metalworking. It features a wide spindle speed range of 20–1600rpm with 16 speed steps, and a spindle travel of 400mm, equipped with an MT5 spindle taper for versatile applications.

Built with high-strength castings and heat-treated steel components, the machine ensures excellent durability and long service life. Key parts are processed with advanced grinding technology for low noise and high precision. Easy to operate and maintain, the Z3063X20 is ideal for manufacturing, repair shops, and mold processing industries.

Specification of Radial Drilling Machine Z3063

Specification	Z3063X20
Max. drilling dia.	63mm
Distance between spindle axis and column	450-2000mm
Distance from spindle nose and working surface of base	400-1600mm
Diameter of column	450mm
Spindle travel	400mm
Spindle taper	MT5
Spindle speed	20-1600rpm
Number of spindle speed	16 steps
Range spindle feed	0.04-3.20mm/r
Number of spindle feed	16 steps
Distance of head horizontal movement	1600mm
Table size	950x630x500mm
Base size	2900x1250x250mm

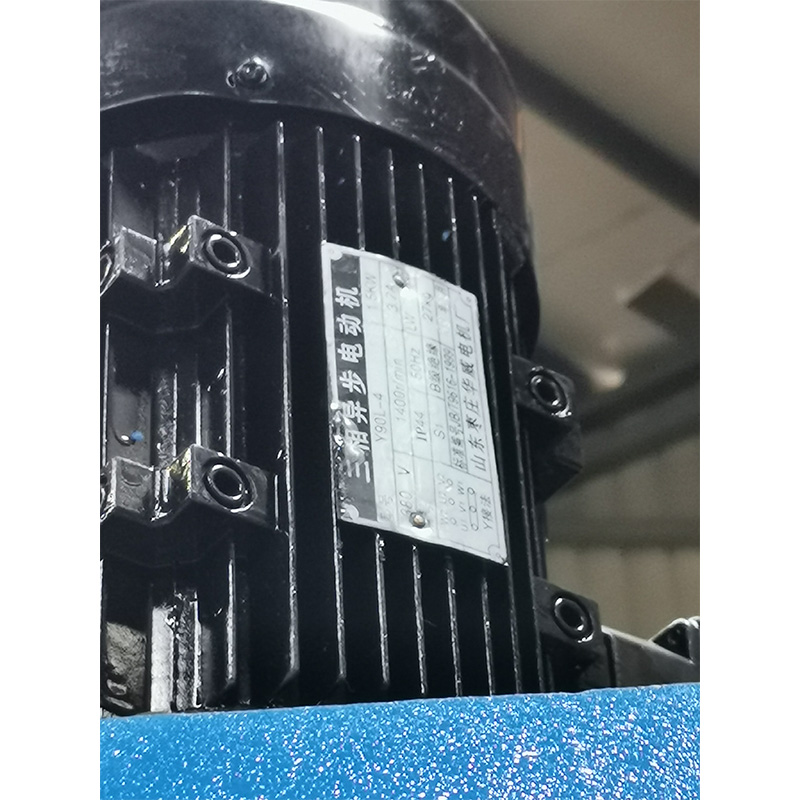

Main motor power	5.5kw
Overall size	3110X1250X3150mm
Packing size	3480X1470X2200mm
N.W./G.W.	6795/7145kgs

Main Features:

The machine offers a wide range of speeds and feeds, including manual, power, and fine feeds. Operators can easily engage and disengage the feeds at any time.
The machine features a safe and reliable feed safety system, making all parts easy to operate and change.
We centralize all controls on the headstock, simplifying operation and part replacement. We power the clamping for assemblies and spindle speed changes hydraulically, ensuring sensitivity and reliability.
We manufacture the main parts using high-precision and efficient machines imported from KIA, ensuring reliability and high quality.
We integrate excellent casting technology and use advanced casting equipment to ensure the high quality of materials for the main components.
We make spindle parts from special high-quality steel and perform heat treatments using top-class equipment, ensuring high strength and durability. We machine the main gears through gear grinding to guarantee high precision and low noise.
