Description
Steel Pipe Threading Machine Q1319 is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.
Specification
| Specification | Q1319 |
| Capacity | |
| Chuck size | 4-jaw chuck(520) |
| Max. swing dia over bed | 630mm |
| Max. swing dia over slide | 340mm |
| Max. length of workpiece | 1500mm |
| Width of bed | 550mm |
| Spindle | |
| Spindle bore | 200mm |
| Spindle motor power | 11kw |
| Spindle speed | VF 2steps(30-500)r/min |
| Axis | |
| Z axis feed grade/range | 32/0.095-1.4mm/r |
| X axis feed grade/range | 32/0.042-0.7 |
| Carriage rapid traverse speed | 3740mm/min |
| Cross slide rapid traverse speed | 1870mm/min |
| Metric thread grade / range | 22/1-15mm |
| Inch thread grade / range | 26/14-1T.P.I |
| Traverse of cross slide | 330mm |
| Max. traverse of turret | 200mm |
| Tailstock | |
| Tailstock quill diameter | 100mm |
| Tailstock quill travel | 250mm |
| Tailstock quill taper | MT5 |
| Machine Dimensions | |
| Overall dimensions (L×W×H) | 3700×1710×1480mm |
| Machine weight | 4.6t |
Main Features
- Big spindle bore and double chuck allow clamp and process big diameter pipes.
- Integral machine bed adopts high strength iron to realize high rigidity and precision.
- Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
- Equipped with a taper guide bar device this enables the machine to process taper threads.

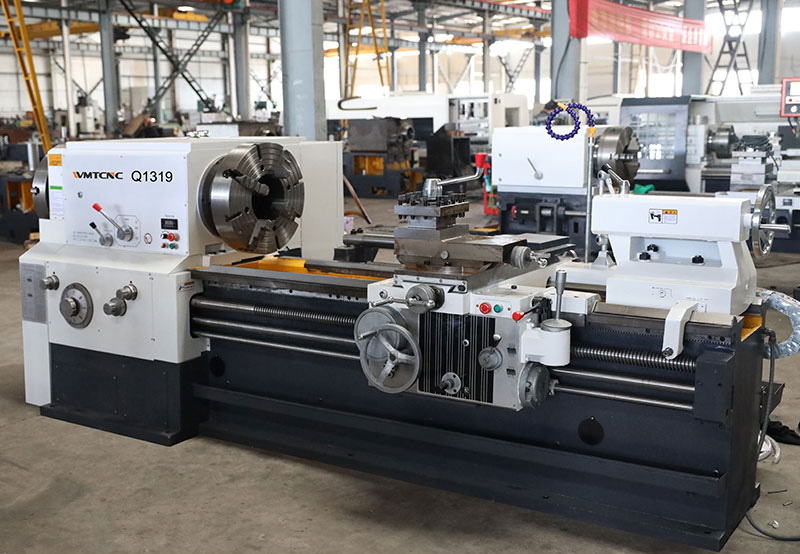

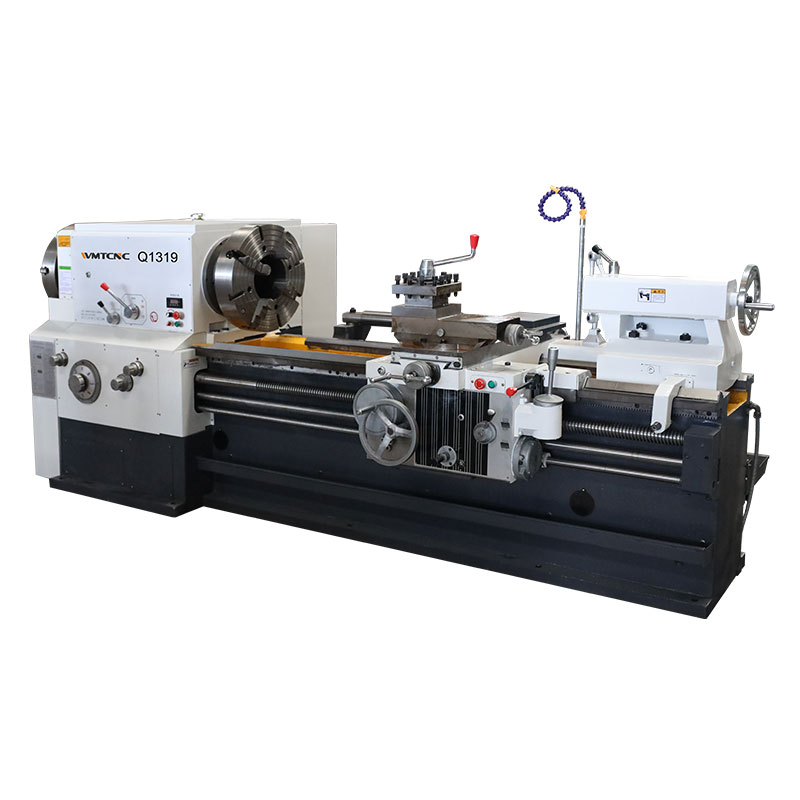

Machine Details
