Description

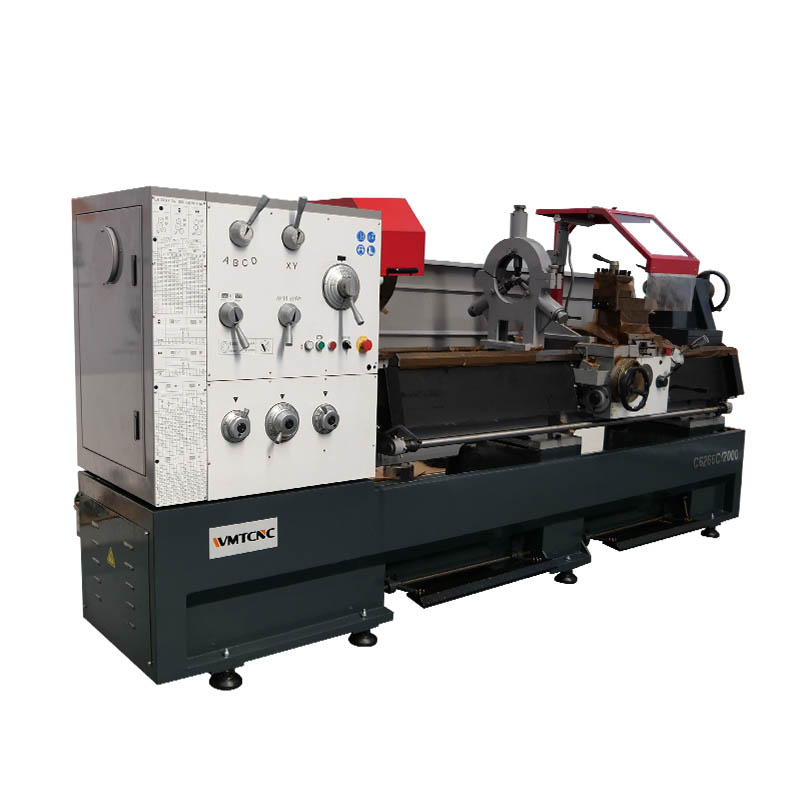

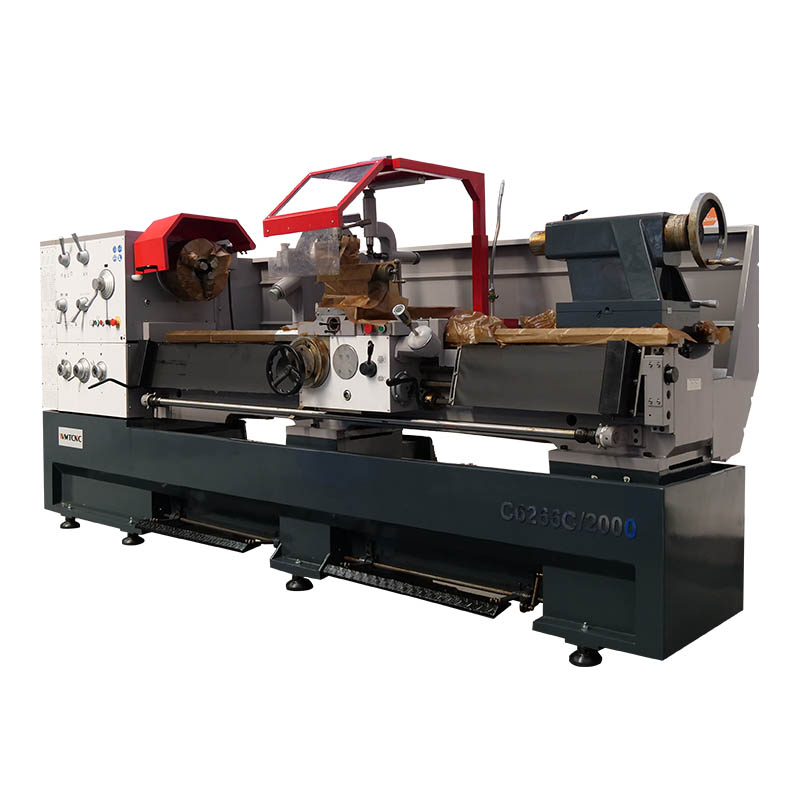

C6266C manual metal lathe is a heavy duty engine lathe designed for general and precision metal turning. With a rigid cast iron bed and large swing over bed, this manual metal lathe offers high stability and cutting performance for machining steel, cast iron and non-ferrous metals in workshops and industrial machining shops.

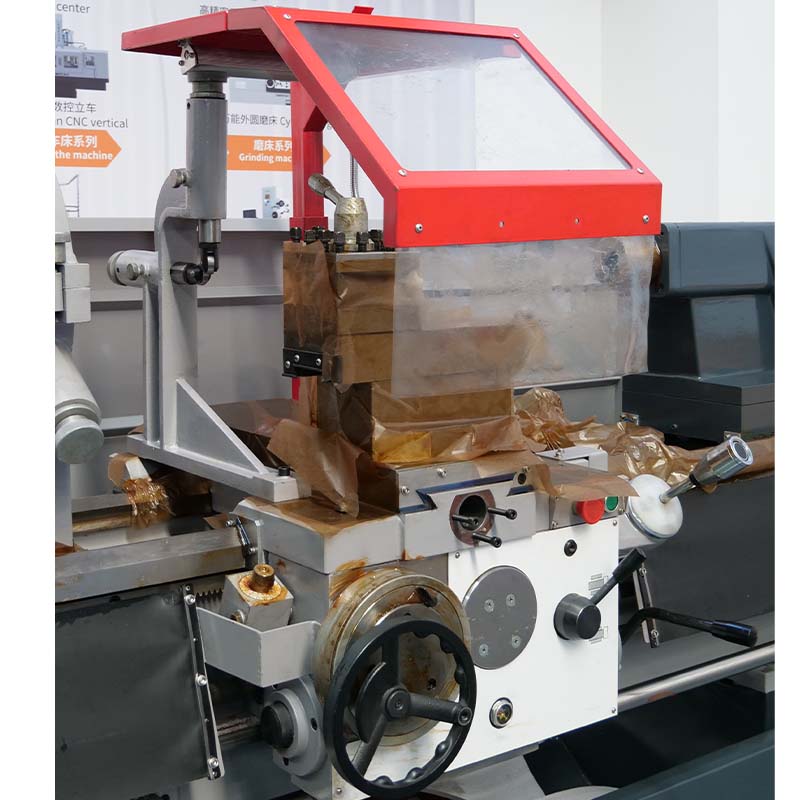

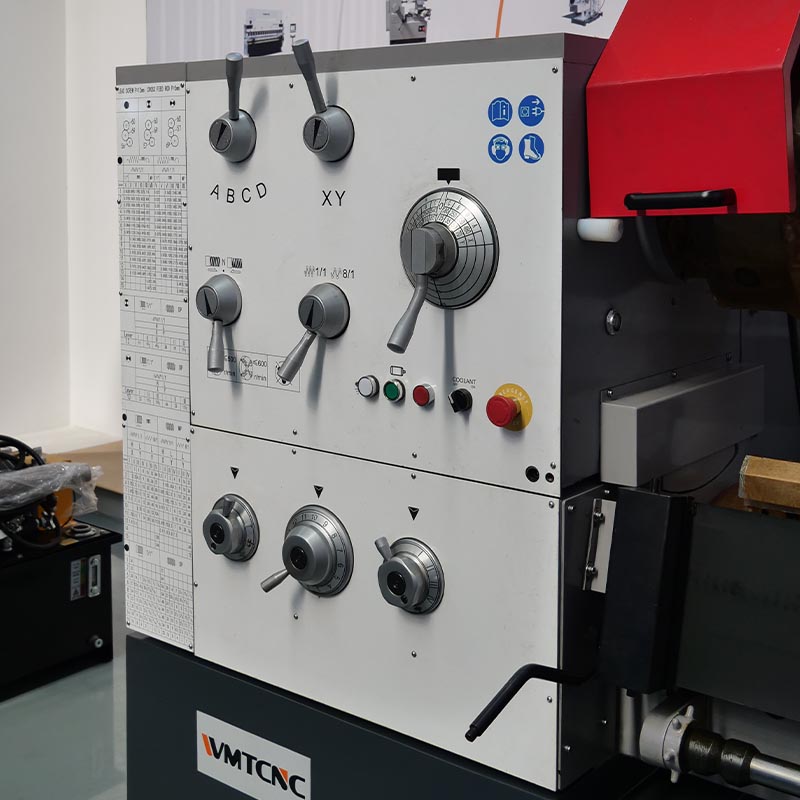

All control levers of the C6266C lathe are clearly arranged on the front panel for convenient and intuitive operation. The manual tailstock, large-size toolpost and reliable braking system help operators work efficiently and safely in daily production and maintenance tasks.
Specification
| Specification | C6266C |
| Max. swing over bed | φ660mm |
| Max. swing over cross slide | φ440mm |
| Max. swing in gap | φ896mm |
| Distance between centers | 1500/2000/3000/4000mm |
| Effective length of gap | 200mm |
| Width of bed | 400mm |
| Spindle nose | D1-8 |
| Spindle bore | φ105mm |
| Spindle taper | φ113(1:20) |
| Range of spindle speed | 16 steps,25-1600r/min |
| Max. travel of top slide | 130mm |
| Max. travel of cross slide | 400mm |
| Max. section of tool | 25×25mm |
| Leadscrew pitch | φ40mm×2T.P.I. or φ40mm×12mm |
| Longitudinal feeds range | 0.063-2.525mm/rev (69 kinds) |
| Cross feeds range | 0.022-0.878mm/rev (66 kinds) |
| Metric threads range | 1-144mm (50 kinds) |
| Inch threads range | 1/4-36T.P.I. (56 kinds) |
| Diametrical pitches range | 1/2-72D.P. (56 kinds) |
| Module pitches range | 0.5-72M.P. (50 kinds) |
| Tailstock quill diameter | 90mm |
| Tailstock quill travel | 235mm |
| Tailstock quill taper | MT5 |
| Main motor power | 7.5kw |
| Coolant pump motor | 120w |
| Overall size | 3300/3800/4800/5800x1100x1970mm |
| Packing size | 3350/3850/4850/5850×1150×2020mm |
| N.W | 3250/3550/4050/4750kg |
| G.W | 3500/3800/4300/5000kg |
Main Features
1.High-torsion horizontal bed, carefully made of high-quality cast iron, and the guide surface is precisely treated by medium-frequency induction quenching.
2.The guide pair composed of polytetrafluoroethylene guide soft belt is wear-resistant, vibration-absorbing, and has good precision retention.
3.The spindle adopts a three-support structure with good rigidity, high precision, and strong cutting.
4.The speed regulation range is wide, and a relatively reasonable speed can be selected.
5.Metric and imperial threads can be directly turned.
6.In addition to completing conventional turning work, the saddle lathe can also turn various flat and special-shaped parts.
7.There are relatively complete special parts for users to choose from.
