Description
TPX6111B of Horizontal Boring Machine in the basis of the traditional boring to optimize the design, the machine tool can be widely used in the Box Body, Shell, Engine Base, large parts processing Drilling, Boring, Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting, etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and another machining process.
Specification
| Specification | TPX6111B | |
| Spindle diameter | 110mm | |
| Max.torque of spindle | 1225N.m | |
| Max.torque of radial slide | 1960N.m | |
| Max.axial thrust of spindle | 12250N | |
| Spindle taper | MT6(Optional:ISO50 7:24) | |
| Max. travel of spindle | 600mm | |
| Max. travel of worktable | Longitudinal（Z） | 900mm |
| Cross（X） | 900mm | |
| Longitudinal with boring stay | 1500mm (special supplied) | |
| Distance from spindle center line to worktable surface | Max.（Y） | 900mm |
| Min. | 0mm | |
| Max.travel of radial tool holder on facing head | 250mm | |
| The worktable is locating in the middle of the lower saddle | 10000kg | |
| The worktable is locating in the end of the lower saddle | 7000kg | |
| Worktable size (L×W) | 1800X1600 | |
| Range of spindle speed | 8-800r/min | |
| Range of facing head speed | 2.5-125r/min | |
| Rapid speed of spindle, headstock, table longitudinal and table cross | 1-2500mm/min | |
| Rapid rotary speed of worktable | 1.2r/min | |
| Range of spindle, headstock and table longitudinal & cross feeds | 1-2500mm/min | |
| Range of radial facing slide feeds | 1-1560mm/min | |
| Reading accuracy of measuring system | 0.01mm | |
| Boring accuracy | IT7 | |
| Boring roughness | ||
| Boring diameter (Distance between spindle nose and tool tip ≤450mm) | φ50-φ240mm | |
| Main motor power | 15kw | |
| Rapid motor power | 3.5kw | |
| Overall dimension of machine (L×W×H) | 7030×4665×3800mm | |
| Weight of the machine (approx) | 28000kg | |
Features
1.Each guide rail of the machine tool adopts rectangular guide rail with wide cross section， PTFE special guide veneer, match with artificial fine scraping, wear resistance and pressure resistance, the rigidity and stability of the machine tool is good.
2.The end of the spindle box is equipped with a flat rotary disk, which can bore larger holes and planes.
3.The worktable is 4×90 degrees, and adopts four-point manual single-pin positioning structure, which ensures accurate and reliable positioning.
4.Each guide rail adopts centralized timing and quantitative lubrication system to ensure that all moving parts are flexible and reliable.
5.The machine tool is equipped with X and Y coordinate grating digital display, which is accurate and reliable.
6.You can choose a change gear bracket to cut threads and expand the machining range of the machine tool.

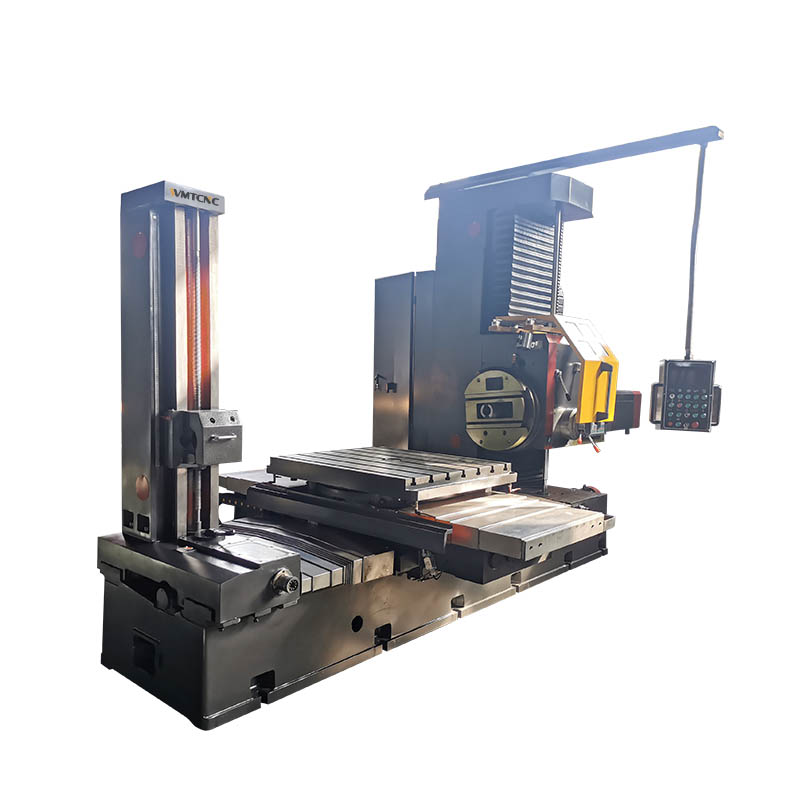

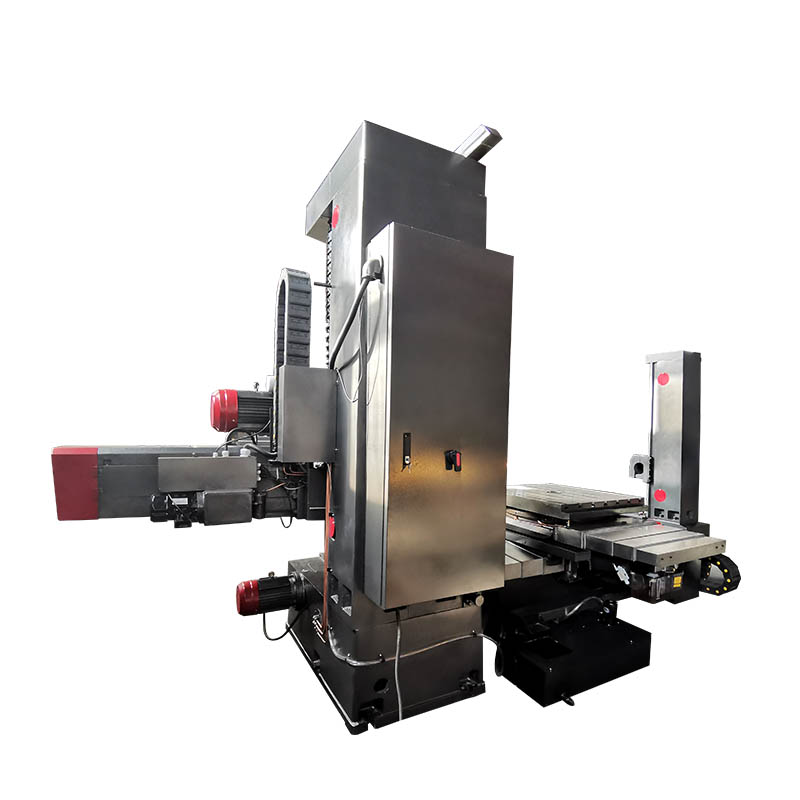

Machine Details
