Description

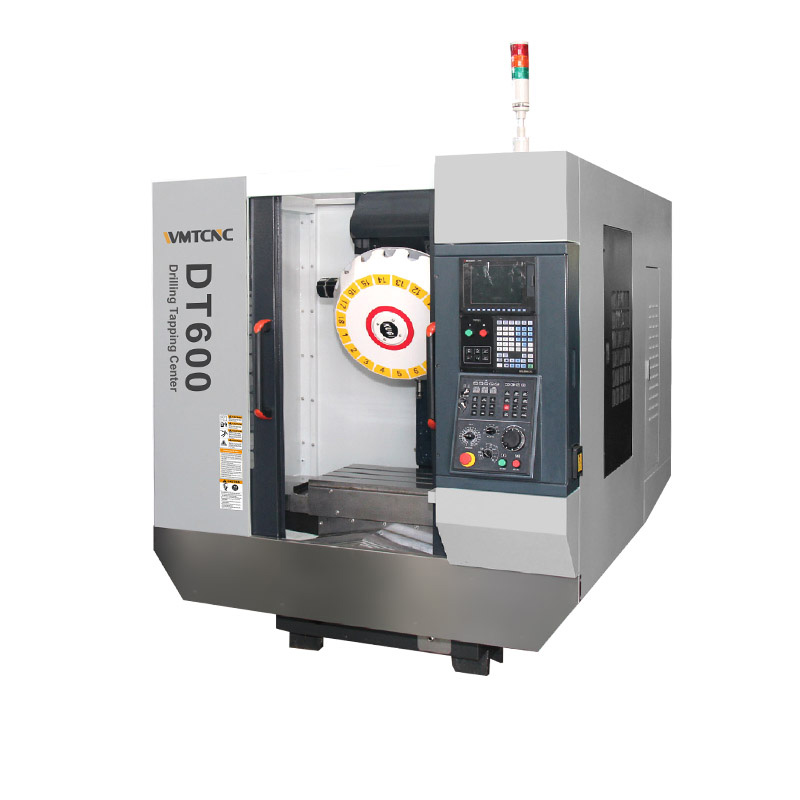

The high-speed drilling & tapping center DT600 is a compact, high-performance drilling and tapping center designed for speed, precision, and efficient use of floor space. Equipped with a powerful BT30-100 taper spindle, this machine delivers up to 20,000 rpm for high-speed milling and rigid tapping applications. With fast axis movements, high-precision positioning, and a robust structure, the DT600 is ideal for small to medium-sized part production where cycle time and accuracy matter most.
Whether you’re producing small metal parts, electronic housings, or doing high-speed hole processing, the drilling & tapping center DT600 gives you speed, rigidity, and precision in one compact, efficient platform.
Drilling & Tapping Center Specification
| Specification | DT600 |
|---|---|
| Worktable size | |
| Worktable size (LxW) | 700×420mm |
| T-slots size (N×W×D) | 3–14×125mm |
| Travel | |
| X/Y/Z axis travel | 600/400/350mm |
| Machining range | |
| Distance from spindle nose to worktable surface | 145–495mm |
| Distance from spindle center to column | 445mm |
| Spindle | |
| Spindle taper | BT30-100 |
| Spindle power | 3.7 / 5.5kW |
| Max. spindle speed | 20000rpm |
| Feed | |
| Rapid feed speed (X/Y/Z) | 48 / 48 / 48 m/min |
| Ball screw | |
| X/Y/Z axis ball screw | Ø32 / P16 / C3 |
| Positioning accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.005 / 300mm |
| Re-positioning accuracy (X/Y/Z) | ±0.003 / 300mm |
| Machine dimension | |
| L×W×H | 1550×2700×2500 mm |
| Machine weight | |
| Max. loading of worktable | 300kg |
| Machine weight | 2400kg |
Main Features
1.BT30 inline spindle with 3.7/5.5kW power reaches up to 20,000 rpm, enabling high-speed drilling, tapping, and light milling with outstanding performance.
2.With 600×400×350mm (X/Y/Z) axis travel and a machine footprint of just 1550×2700mm, the DT600 offers excellent machining capacity in a space-saving layout.
3.Rapid traverse rates of 48 m/min on all axes and high-precision Ø32/P16/C3-grade ball screws ensure smooth, reliable movement and minimal non-cutting time.
4.Achieves ±0.005mm positioning accuracy and ±0.003mm re-positioning accuracy per 300mm, making it ideal for jobs requiring strict tolerances and repeatability.
5.The 700×420mm worktable supports up to 300kg, making it suitable for a wide range of workpieces and setups.
Drilling & Tapping Center Machine Details
Tool Magazine
Worktable
