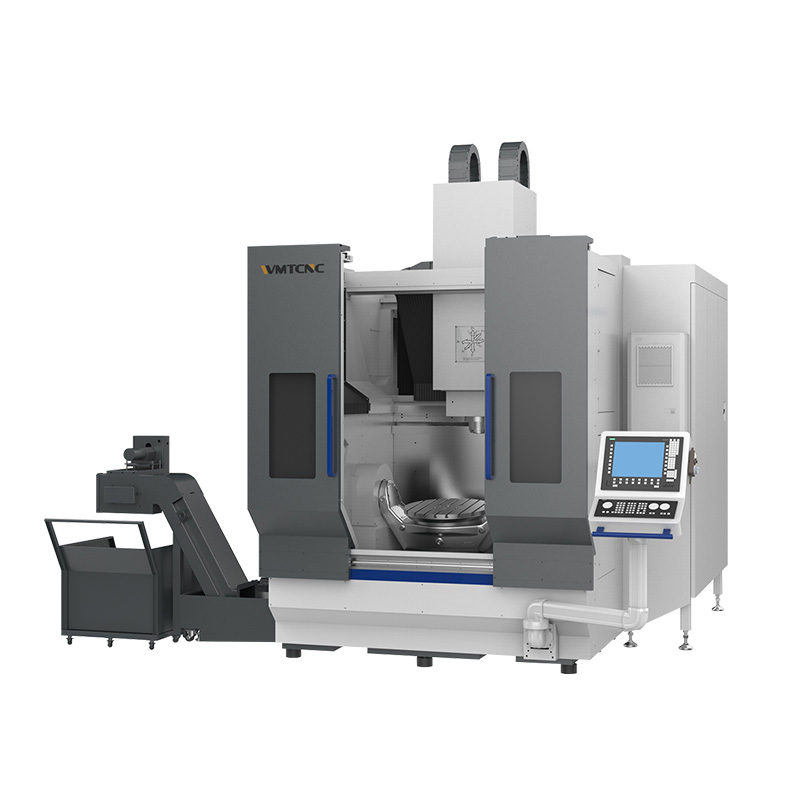

WMTCNC 5-Axis Simultaneous CNC Vertical Machining Center

WMT-V63 WMTCNC 5-Axis Simultaneous CNC Vertical Machining Center

18000 rpm Spindle Speed
HSK A63 Spindle Hole
800/800/550mm X/Y/Z-axis Travel
30 ATC capacity/Chain Type
30kW Main Servo Motor
Brand Name:WMTCNC

Description

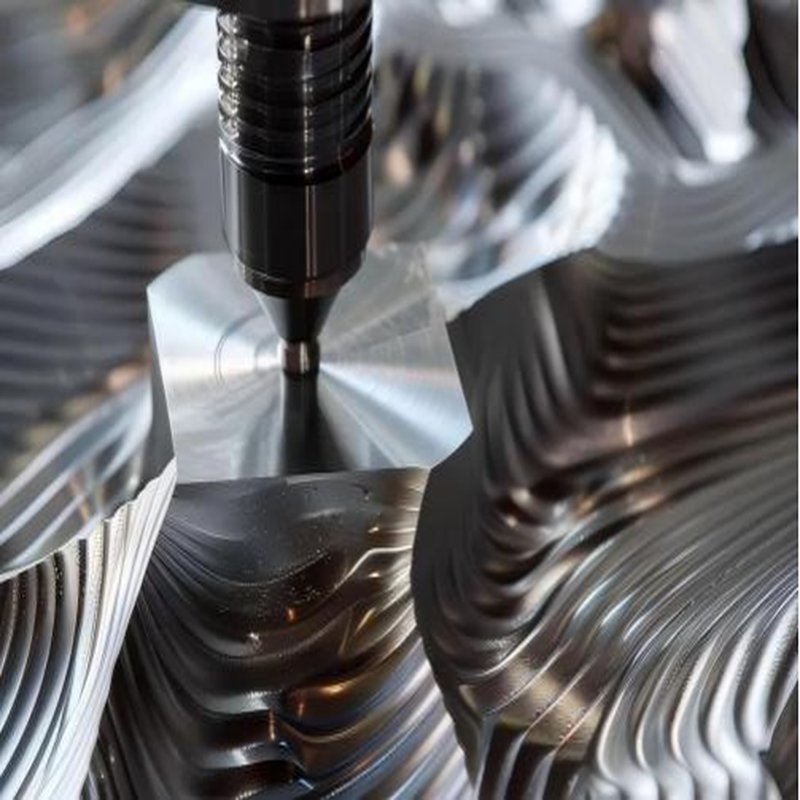

The WMT-V63 5 – Axis Machining Center features a moving gantry (bridge-type) design with a moving crossbeam and fixed columns and worktable. The crossbeam moves along the Y – axis, the saddle along the X – axis on the crossbeam, and the spindle along the Z – axis on the saddle. Equipped with a swiveling A/C rotary table, it enables 5 – axis simultaneous machining. One – time clamping can finish multi – sided part machining, reducing clampings effectively. It’s ideal for complex spatial surface machining in industries like new energy vehicles, molds, aerospace, and medical devices.

Specification

Specification	Unit	WMT-V63
Machine Capacity
X/Y/Z-axis travel	mm	800/800/550
A axis rotation range	mm	±115
C axis rotation range	mm	360
Distance from spindle nose to work table	mm	120-670
X/Y/Z-axis rapid traverse speed	m/min	48
A/C axes rapid rotational speed	mm/min	60/100
Structure	rpm	Bridge Type (A-axis Dual Drive)
Swivel Table
Table size	mm	φ630
Load capacity of rotary table	kg	850
T-slot		7-14 × 80°
Accuracy
Positioning accuracy X/Y/Z	mm	0.006/0.006/0.006
Repeatability accuracy X/Y/Z	mm	0.004/0.004/0.004
Positioning accuracy A/C	sec	±8/±8
Repeatability accuracy A/C	sec	±4/±4
Servo Motor
B axis motor torque	sec	1290/2400 × 2
C axis motor torque	Nm	600/1100
Spindle
Power of electric spindle	kW	30
Torque of spindle	N·m S1/S2	72/85
Max spindle speed	r/min	18000
Spindle taper hole	/	HSK A63

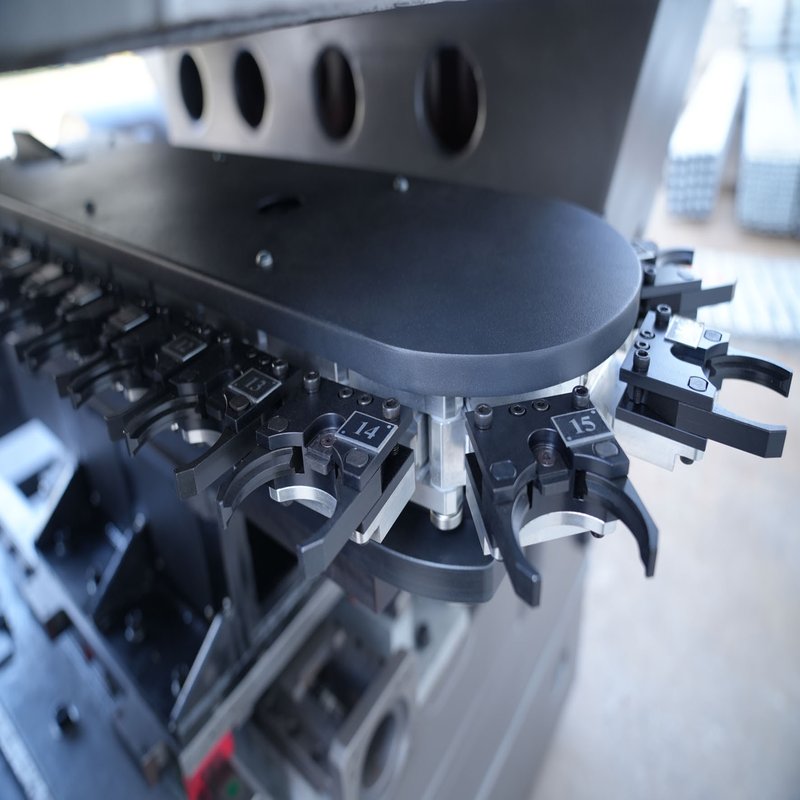

Tool Changer
Type	/	Chain Type
Num. of tool positions	nos	32, 40, 60, *90
Max tool weight	kg	8
Max tool length	mm	300
Max tool diameter (Full / beside empty)	mm	φ75 / φ120
Other
Compressed air	MPa	0.6-0.8
Power capacity	kW	68
Dimension (L × W × H)	mm	2728 × 3760 × 3726
Weight	kg	16500

Main Features

1. The gantry-type structure offers robust rigidity and consistent load distribution, effectively ensuring the machine’s accuracy.

2. Closed-loop control for the X, Y, Z, A, and C axes ensures exceptional precision and enables high-precision machining.

3. The entire machine undergoes finite element analysis to ensure high rigidity. All components are meticulously crafted to maintain the machine’s accuracy over an extended period.

4. The machine is equipped with the Siemens 840D 5-Axis CNC system, ensuring reliable operation in various environments.

5. It features a high-power electric spindle designed to meet the demands of both heavy-duty cutting and precision machining.

6. The reinforced column structure, which has undergone rigorous finite element analysis and optimization, is structurally sound, ensuring the machine’s rigidity and accuracy retention.

7. For reliable machining processes in automated systems, the production cabin features chip waste-optimized stainless steel cladding and integrated bed flushing from the left, right, front, and rear to ensure optimal chip disposal.
