Description

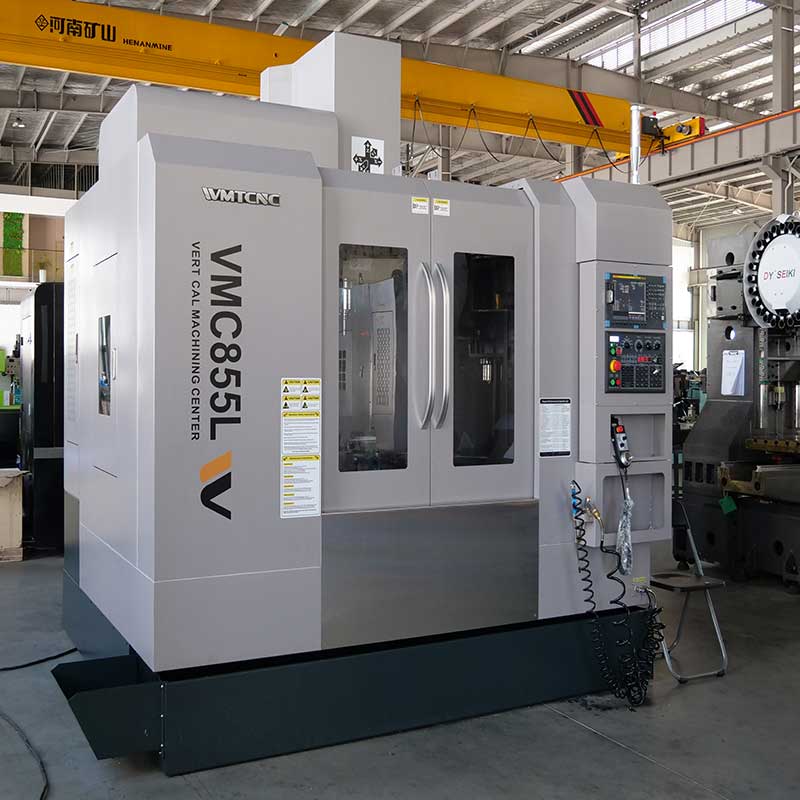

The VMC855L Vertical Machining Center is a high-performance CNC milling machine designed for industrial precision and efficiency. Featuring a large worktable, rigid box-type structure, and upgraded spindle system, it ensures excellent cutting stability and machining accuracy even during heavy-duty operations.
With its optional 4th axis rotary table, the VMC855L allows multi-sided machining in a single setup, significantly reducing cycle times and manual repositioning. High-speed linear guideways, precision ball screws, and a powerful spindle drive system provide consistent, high-speed performance for complex parts in automotive, aerospace, mold-making, and general metalworking industries.
Whether you’re producing molds, engine components, or precision fixtures, the VMC855L delivers superior reliability, productivity, and long-term machining value.
Specification
| Specification | VMC855L |
|---|---|

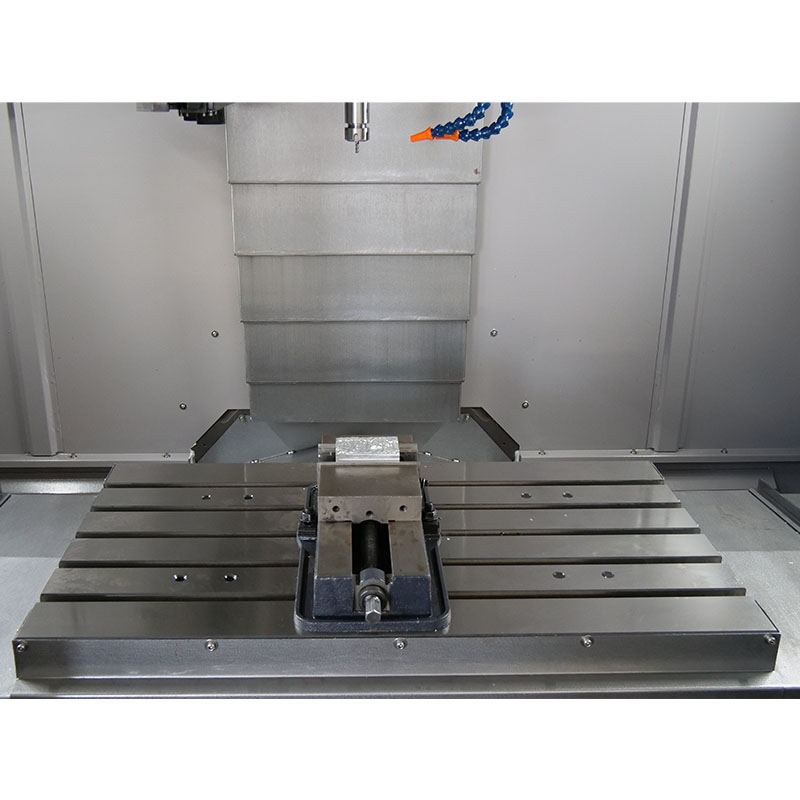

| Workbench dimensions | 550×1000mm |
| Left-right travel (X) | 800mm |
| Front-back travel (Y) | 550mm |
| Vertical travel (Z) | 550mm |
| Workbench load capacity | 500kg |
| Workbench T-slots (number – size × spacing) | 5–18×90 |
| Distance from spindle center to column guide rail | 590mm |
| Distance from spindle face to workbench | 120–670mm |
| Spindle | BT40 / Ø150 |
| Spindle speed | 8000 rpm (Belt-driven) |
| Main motor power | 7.5kW |
| X/Y/Z-axis ball screw | 4016 |
| X/Y/Z-axis rapid traverse speed | 32 / 32 / 32 m/min |
| X/Y/Z-axis roller guides | X: RGH35HA Y/Z: RGW45HC |
| X/Y/Z-axis coupling specs | BK3-150 |
| X/Y/Z motor connection | Direct drive |
| Tool magazine | BT40 / 24T (Carousel type) |
| Positioning accuracy (X/Y/Z) | 0.008mm |
| Repeatability (X/Y/Z) | 0.005mm |
| Machine net weight | 5500kg |
| Machine dimensions (L×W×H) | 2800×2300×2300mm |
Upgrade Advantages
1.The heat exchanger has been upgraded from an optional configuration to a standard configuration. It reduces equipment temperature through heat dissipation, maintains a stable working environment, improves processing accuracy, and extends equipment service life.
2.Work lights have been added to the interior of electrical cabinets to facilitate maintenance and inspection work.
3.The electrical control system has been upgraded to an integrated control circuit board, enabling customers to identify faults through error codes and make accurate judgments for troubleshooting. Additionally, the system supports remote board repair and replacement services.
4.Convenient for customers to maintain and upgrade in the future.
5.Newly added thermal overload protector Prevents the motor from tripping in case of overheating.
6.Added external communication interface. Added power socket for convenient power supply to customer work computers
Machine Details

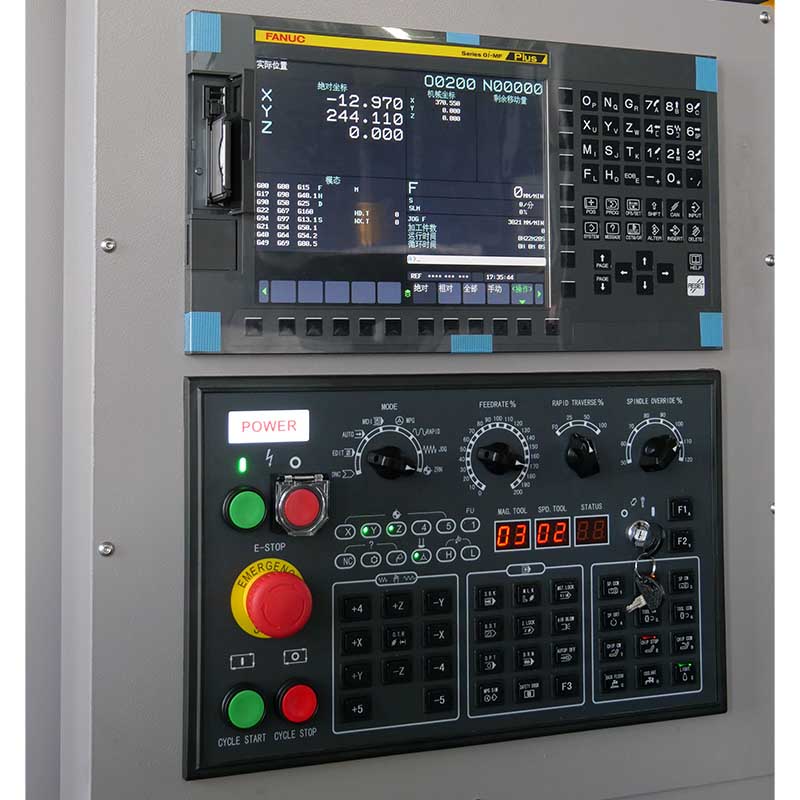

GSK, Fanuc, Siemens controller as optional selection

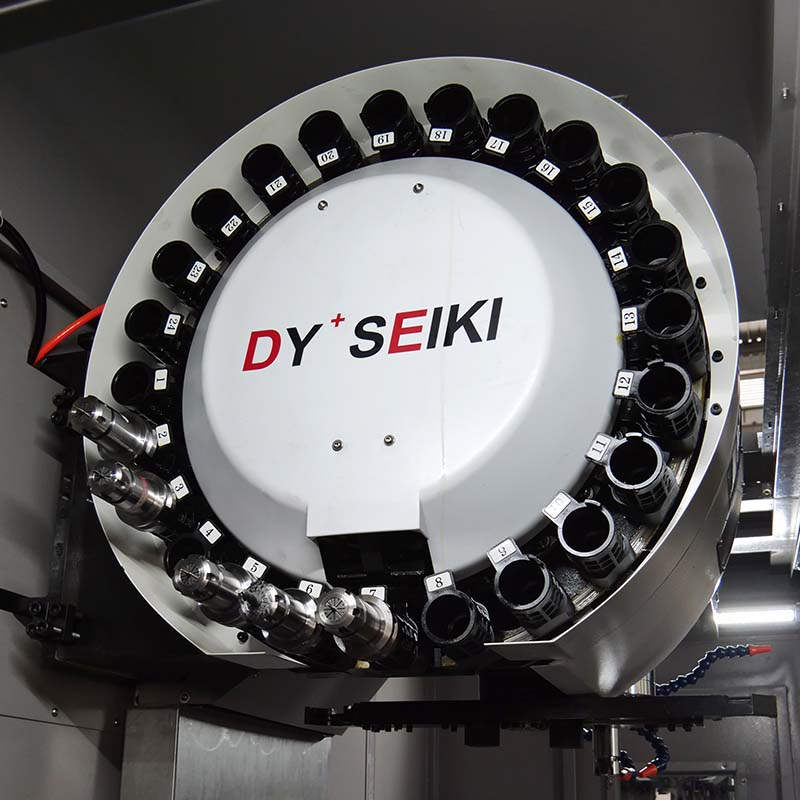

Disc Type ATC

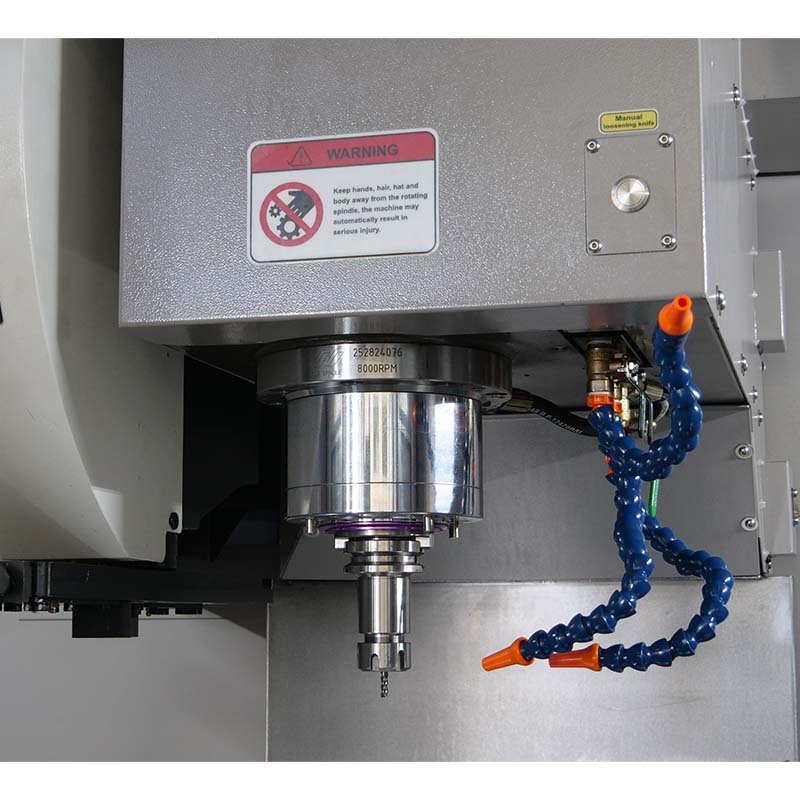

Spindle unit BT40 of VMC

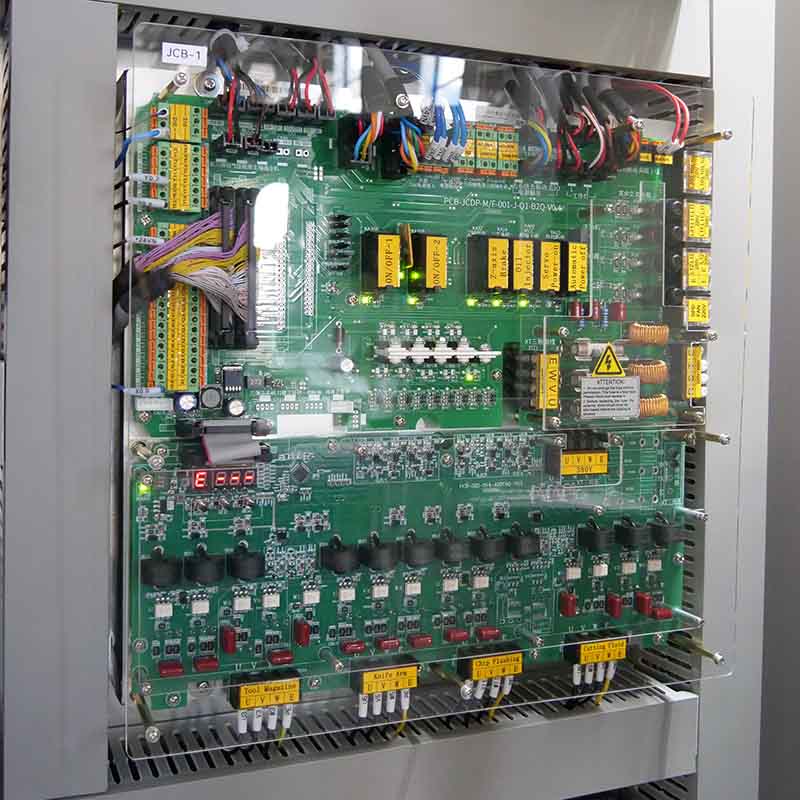

Electria Cabinet
