Description

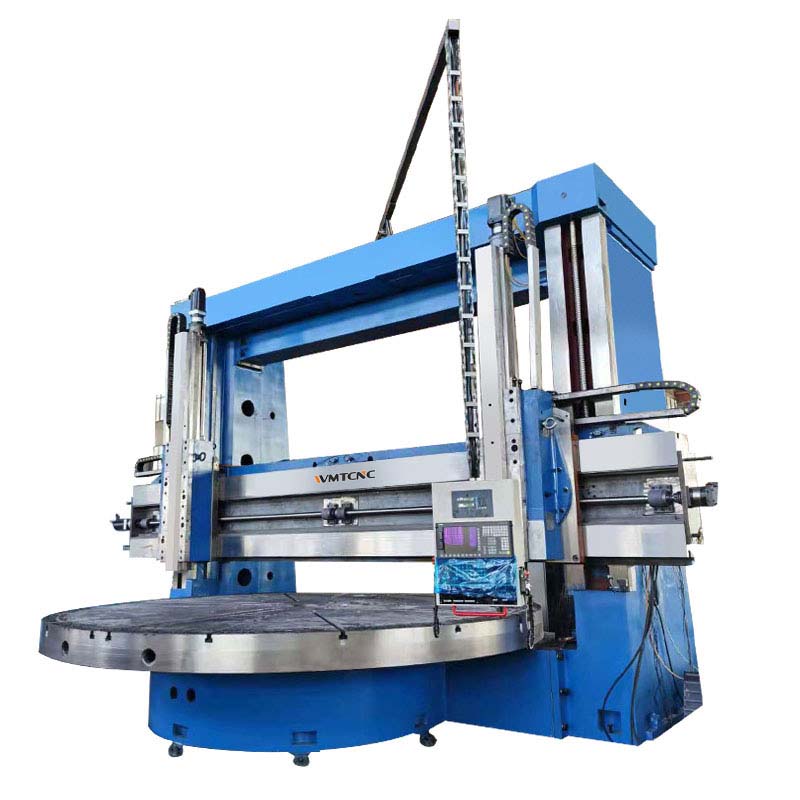

Vtl machine CK52 series are semi-closed loop full CNC controlled lathes, whose available selection systems are SIEMENS. FANUC OITF Guangzhou CNC, Huazhong CNC etc. Vtl machine CK52 series are suitable for machining all kinds of cast iron, steel and alloy, non-ferrous metal, non-metal materials, etc. it can turn internal and external cylinders,internal and external cones, flat surfaces, grooves, threads and various rotating curved bodies. The machine has good systen rigidity,high precision, high efficiency, high stability and reliability, whose spindle is equipped with encoders that provide functions of constant linear speed cutting and thread turning.
Specification
| Specification | CK5225 |
| Table dia. | 2250mm |
| Max. turning dia. | 2500mm |
| Max. workpiece height | 1600,*2000,*2500mm |
| Max. workpiece weight | 10,*15,*20t |
| Max. torque of worktable | 63KN.m |
| Table rotation speed range（16step) | 0.5-60r/min |
| 2-63r/min | |
| Max cutting force of the vertical holder | 32KN |
| Vertical toolholder move limit | ±30° |
| Range of feed rates (18step) | 0.1-500mm/min |
| Horizontal travel of rail head | 1400mm |
| Ram travel of rail head | 1000mm |
| Beam Travel | 1250mm |
| Tool bar section size(Wx D) | 40x50mm |
| Ram section | 240x240mm |
| Main motor power | DC/AV:55kw |
| Overall size(LxWxH) | 7200x5500x4420mm |
| Machine weight | 36t |

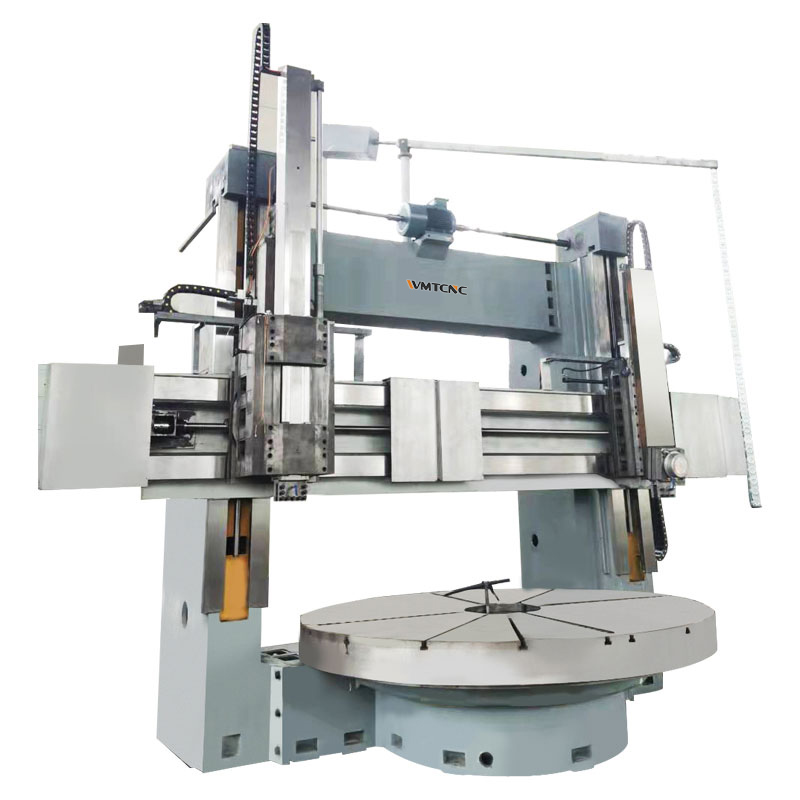

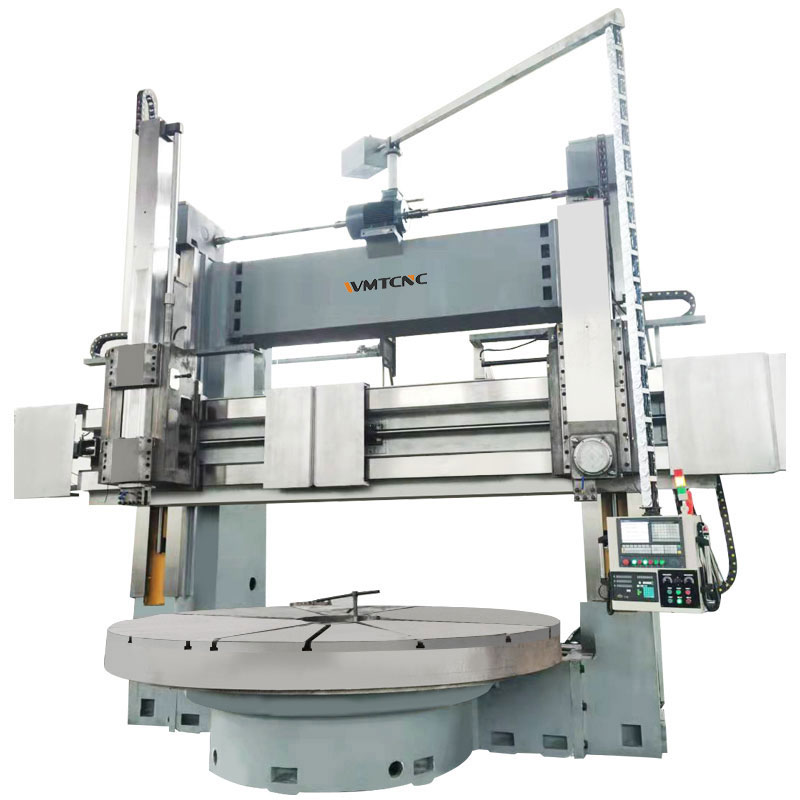

Machine Details
 |  |
 |  |
Vertical Lathe Workpiece
 |  |
Main Features
Thread turning.
Turning inner and outer conical surfaces.
Various curved surfaces.
Vtl machine for turning inner and outer cylindrical surfaces and planes.
Why Choose WMTCNC’s CNC Vertical Lathe Machines?
WMTCNC specializes in high-precision CNC vertical lathe (VTL) machines for industries such as automotive, aerospace, and precision engineering. With over 29 years of experience, we are a leading provider of industrial manufacturing equipment.
Expertise and Innovation
Since our inception in 2014, WMTCNC has focused on integrating research and development, production, sales, and after-sales service to deliver reliable and efficient manufacturing solutions. Our CNC VTL machines are designed for various applications such as cylindrical turning, boring, tapering, surfacing, and grooving—from roughing to precision finishing.
Our products are exported to over 150 countries and regions, widely used in high-tech industries such as automotive, aerospace, electronics, and precision engineering. Our solutions are trusted by thousands of customers around the world for their quality, durability, and performance.
Commitment to Quality
We adhere to the concept of “not to be bigger, but must be more refined,” ensuring that our products meet the highest standards of quality and precision. Our machines are CE certified and utilize components from well-known brands in Japan, Taiwan, and Germany, guaranteeing reliability and performance.
WMTCNC provides lifetime maintenance services, free technical training, and 24-hour online support to ensure that our customers receive the best possible service throughout the lifespan of our machines.
FAQ
1. What industries benefit from using a CNC Vertical Lathe?
CNC Vertical Lathes are ideal for industries such as aerospace, automotive, oil & gas, and heavy machinery, where high-precision machining of large, heavy workpieces is required.
2. What are the main advantages of using a CNC VTL machine?
The main advantages of CNC VTL machines include high precision, automated processes, improved efficiency, and the ability to handle large and heavy workpieces with ease. They also reduce human error and increase production speed.
3. What is the maintenance required?
Routine maintenance includes checking the lubrication system, cleaning the machine, inspecting the spindle and motor, and verifying that all components are functioning properly. Regular servicing and monitoring ensure the longevity and accuracy of the machine.
4. Is training provided with the purchase of a CNC VTL?
Yes, WMTCNC offers free technical training for operators to ensure you can use the CNC VTL machines efficiently. We also provide maintenance support.
5. What is the delivery time?
Delivery times depend on the specific model and order quantity. Typically, delivery can range from a few weeks to a few months based on customization and manufacturing schedules.
