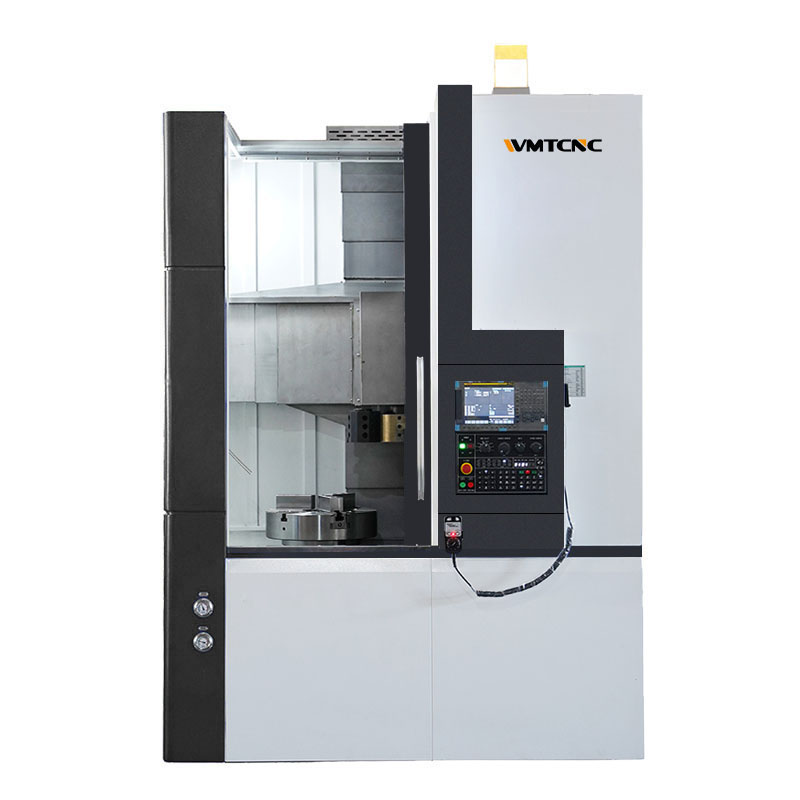

Description
Small cnc vtl is an excellent product designed and produced by our company for many years on the basis of absorbing the advanced technology of similar machine tools at home and abroad. This series of machine tools is economical and efficient and is the first choice for processing complex disk parts in automobile, industry, and other machinery industries.
Specification
| Specification | LCK320 |
| Rail width | 260mm |
| Spindle nose | A2-5 |
| Spindle bore | 56mm |
| Chuck | 6” |
| Range of spindle speed | 100-4000rpm |
| X axis travel | 350mm |
| Z axis travel | 420mm |
| X/Z Rapid speed | 16/18m/min |
| Station of tool carrier | 4 or 6 |
| Max. section of tool | 20x20mm |
| Main motor power | 3.7kW |
| Coolant pump power | 180W |
| Overall dimensions L x W x H | 2000x1400x1500mm |
| Parking size L x W x H | 2200x1650x1800mm |
| Net weight | 1400KG |
| Gross weight | 1650KG |
Main Features
Space saving, footprint 50% smaller.
Easy setup.
No deflection from gravity.
Weight doubled, power tripled.

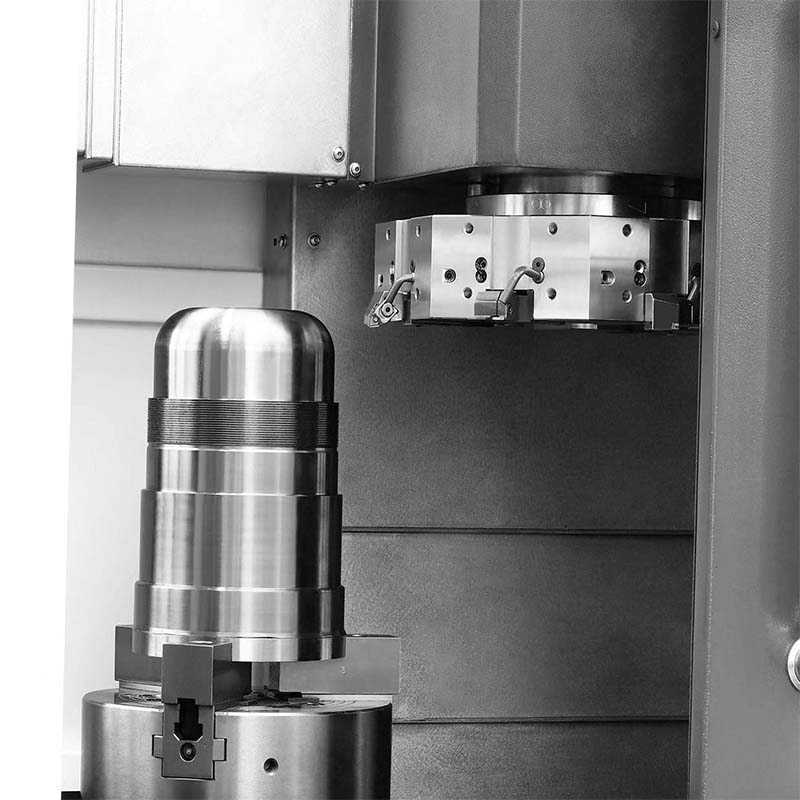

The standard 8-station turret stands up to versatile production requirements.
Small CNC vtl with compact design, plus, square base casting minimizes floor space requirements and increases anti-vibration forces.
High-speed spindle unit with a powerful servo drive motor offers high-speed finish cutting, and low-speed heavy duty cutting in the same machine.
