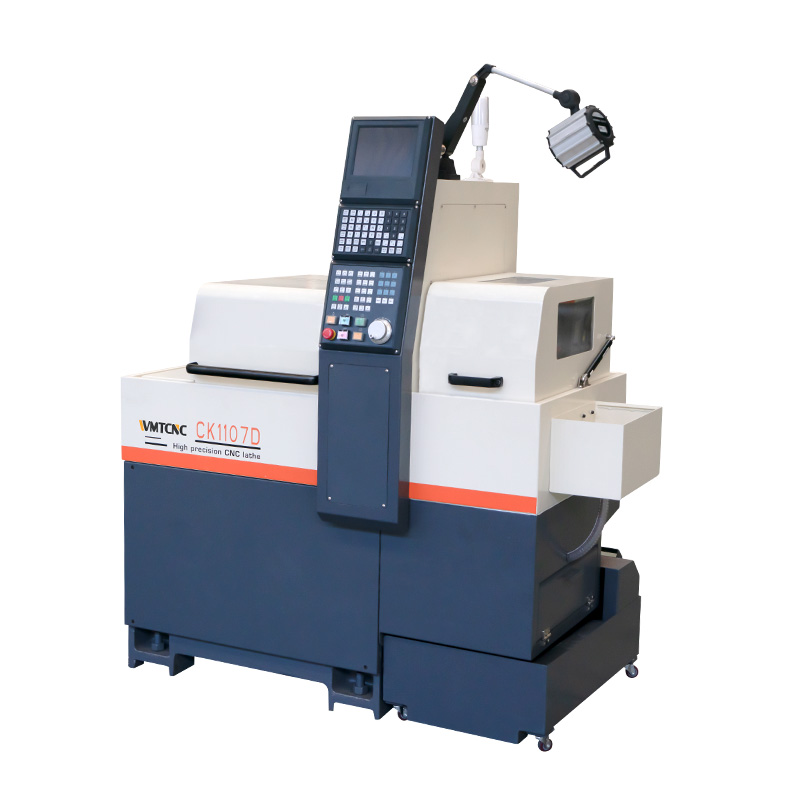

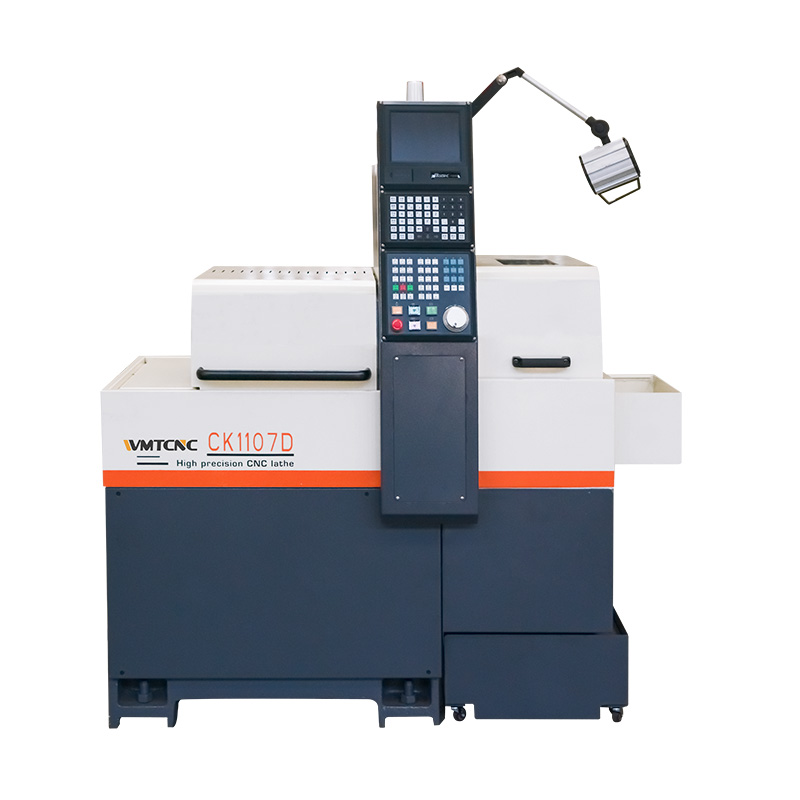

Description
The 3 axis of CK1107D cnc swiss lathe machine adopt linear rolling guide rail, which is driven by absolute value servo motor. The linear tool arrangement structure has the characteristics of rapid tool change and high precision. The CNC system has perfect functions and simple operation. Equipped with automatic feeder, automatic production can be achieved.
Specification
| Technical Parameter | Specification | CK1107D |
| Power | Total Input Power | 3.5kW |
| CNC System | BYSK | YZ190 |
| Minimum Set Unit | 0.001mm | |
| X Axis Pulse Equivalent | 0.0005mm | |
| Y Axis Pulse Equivalent | 0.001mm | |
| Z Axis Pulse Equivalent | 0.001mm | |
| Max. Program | 土9999.999 | |
| Cutting Speed | 1-4000mm/min | |
| X Axis Rapid Feed Speed | 18000mm/min | |
| Y Axis Rapid Feed Speed | 18000mm/min | |
| Z Axis Rapid Feed Speed | 18000mm/min | |
| Spindle | Max Bar Diameter | Φ7mm |
| Main Spindle Through-hole Diameter | Φ9mm | |
| Main Spindle Center Height from Ground | 890mm | |
| Main Spindle Speed | 0-7000r/min | |
| Main Spindle Motor Power | 1.5kW | |
| Travel | X Axis Travel | 50mm (Diameter) |
| Y Axis Travel | 100mm | |
| Z Axis Travel | 150mm | |
| X Axis Servo Motor Power | 0.4kW | |
| Y Axis Servo Motor Power | 0.4kW | |
| Z Axis Servo Motor Power | 0.4kW | |
| Guide Rail Form | Linear Guide Rail | |
| Gang Tooling System | Tools Arrangement | 9pcs |
| Turning & Milling Tools | 6pcs | |
| Tool Size | 8*8mm | |
| Front Drilling | 3pcs ER11/Φ16 | |
| Side Live Tool | ER11 | 2pcs |
| Rotational Speed | 0-6000r/min | |
| Power | 0.4kW | |
| Cooling System | Motor Power for Cutting Oil | 0.12kW |
| Cooling Tank Capacity | 50L | |
| Lubrication System | Motor Power | 25W |
| Capacity | 2L | |
| Pneumatic System | Input Compressed Air Pressure | 0.4–0.6Mpa |
| Machine Size | Length*Width*Height | 1480*800*1630 |
| Machine Weight | 750kg |
Main Features

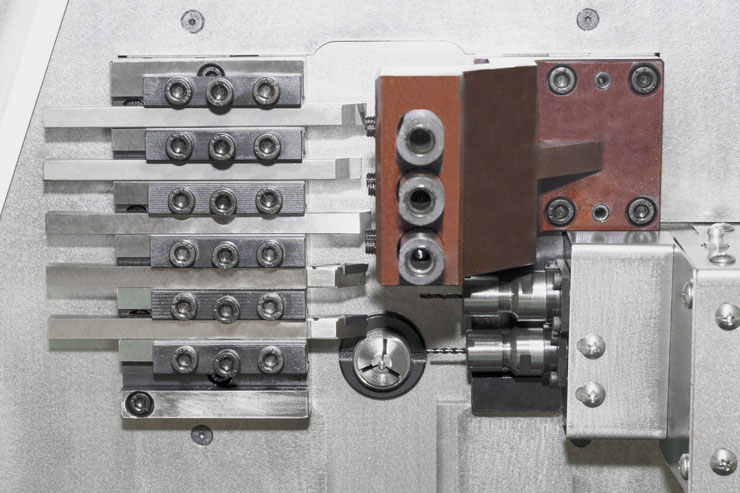

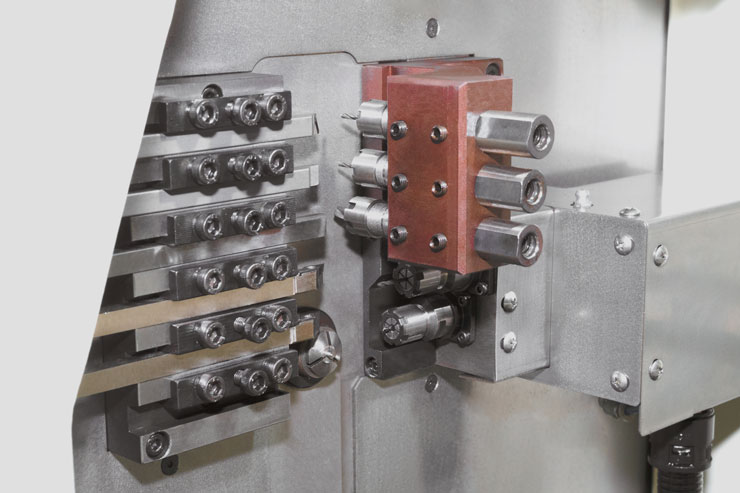

Left and right gang tool post structure, large quantity, fast tool change speed and good rigidity. It can process all kinds of super slender parts. Reasonable layout, small appearance and small floor area.

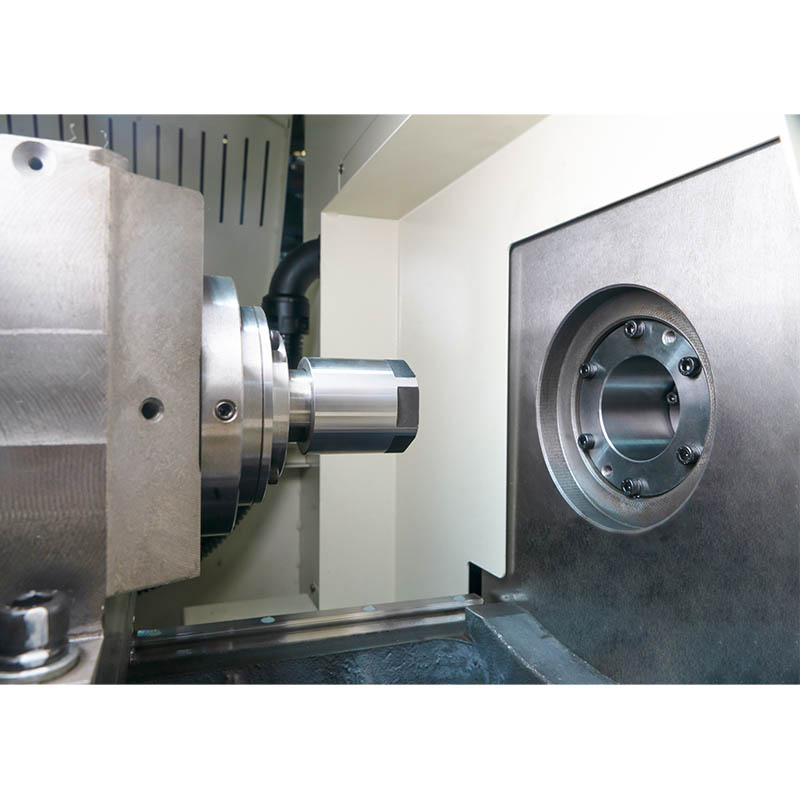

The fixed guide sleeve can process slender shafts with a length of less than 150mm, keep the processed workpieces maintain relatively high coaxiality and finishing. It is very suitable for turning workpieces with the length times to multi diameter ratio.
