Description

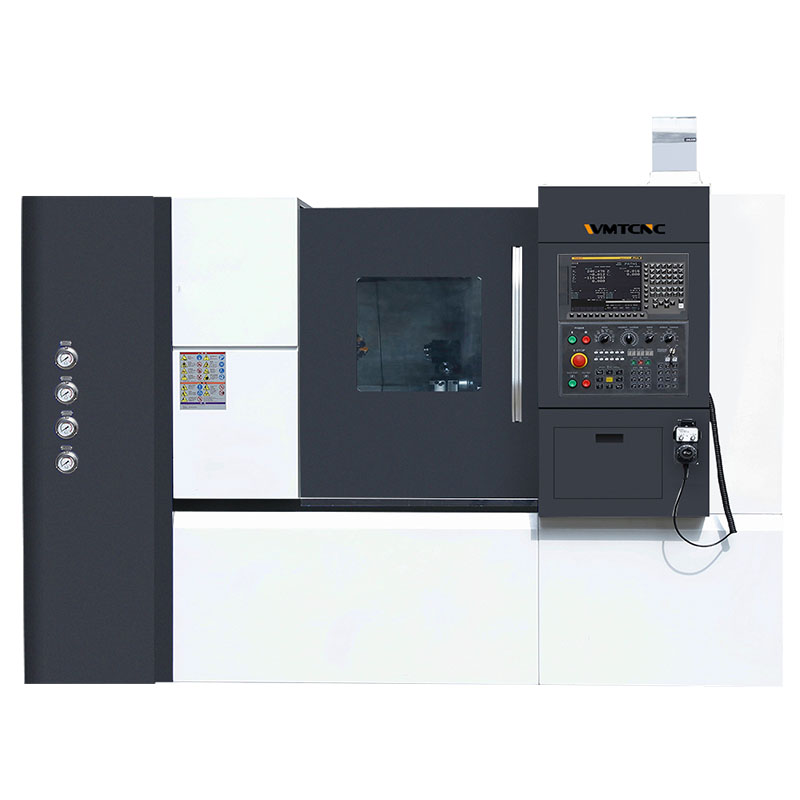

TX series turning center cnc lathe provides DDS spindle or Belt spindle unites Driven tool turret, and Y axis features. This series extremely extends machining capability for combining turning and off-center milling. With the Y axis, customers can replace more than 90% secondary machining process by milling machines for turned parts. It will save labor time, and increase accuracy and efficiency.
Specification
| Specification | Unit | TX500EY | |
|---|---|---|---|
| Capacity | Max. turning diameter | mm | 320 |
| Max. length of workpiece | mm | 650, 1000, 1500 | |
| Max. swing dia. over bed | mm | 600 | |
| Max. swing dia. over slide | mm | 430 | |
| Spindle | Hydraulic chuck/Collet chuck | Inch | 8 |
| Spindle bore | mm | Ø66 | |
| Max. dia. of through-hole | mm | Ø52 | |
| Spindle nose | type | A2-6 | |
| Spindle speed | rpm | 4000 | |
| Main motor power | kW | 22/30 | |
| Axis | X axis travel | mm | 250 |
| Z axis travel | mm | 650, 1000, 1500 | |
| Y axis travel | mm | 100(±50), 140(±70) | |
| X/Z/Y axis rapid traverse | m/min | 20/20/12 | |
| Turret | Type of turret | BMT45, BMT55 | |
| No. of tool | 12 | ||
| OD tool shank size | mm | 20×20, 25×25 | |
| Boring tool shank size | mm | Ø32 | |
| Max. speed of live tooling | rpm | 4000, 6000 | |
| Tailstock | Type of tailstock | SPT, SST | |
| Taper of tailstock quill | MT3 (spindle unit type) | ||
| Travel of tailstock | mm | 100-650 | |
| Structure | Slant bed degree | ° | 35 |
| Guideway type | LM | ||
| Others | Overall dimension (LxWxH) | mm | 3000x1780x2050 |
| Weight (about) | kg | 4800 | |
Features
Able to flexibly handle various workpieces.
The 12-station power turret enables the operator to machine simple to complex workpieces with one easy setup operation.
These models also feature a Direct Drive Spindle ( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.
WMTCNC turning center cnc lathe has a heavy-duty cast base with “True Align” bed design.
This design feature reduces heat build-up and resulting thermal expansion.
Cylindrical type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
With a very low coefficient of friction, they consume less power and do not require adjustment.
